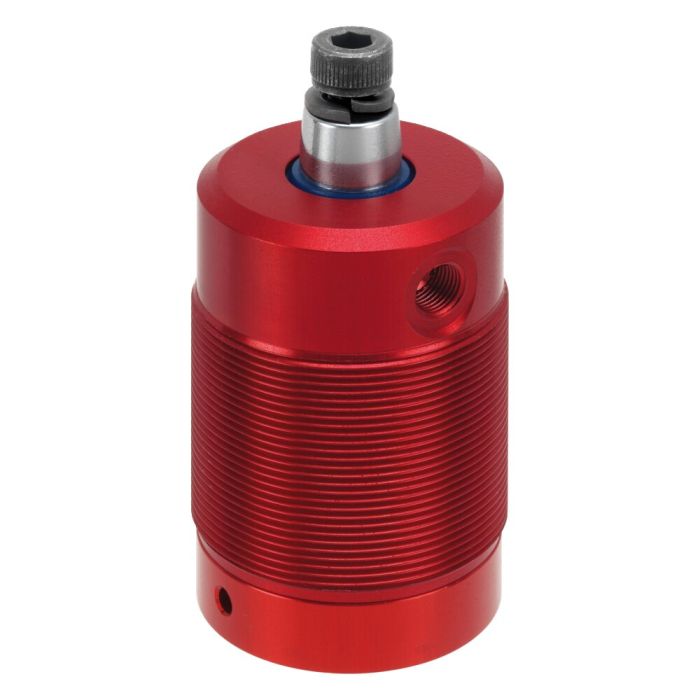

Swing clamp, pneumatic, screw-in version

Size 40, max. clamping force 0,45 kN, right swinging

Order no.

92825

Order no.	Size	right swinging	left swinging	F3 [kN]	Connecting thread for clamping screws	Weight [g]
560027	12	-	✓	0,03	M4	100
560028	16	-	✓	0,06	M4	150
560029	20	-	✓	0,08	M6	270
560062	12	✓	-	0,03	M4	100
560063	16	✓	-	0,06	M4	150
560064	20	✓	-	0,08	M6	270
92809	25	✓	-	0,17	M 6	450
92817	32	✓	-	0,27	M 8	550
92825	40	✓	-	0,45	M 8	700
92833	50	✓	-	0,70	M12	850
92841	63	✓	-	1,10	M12	1000
92858	25	-	✓	0,17	M 6	450
92866	32	-	✓	0,27	M 8	550
92874	40	-	✓	0,45	M 8	700
92882	50	-	✓	0,70	M12	850
92890	63	-	✓	1,10	M12	1000

Order no.	D3	dia. D4	E	F	H	H1	H2	H3	H4	I	O	R	dia. W	Piston dia.	Y Clamping stroke*	Stroke
560027	M25x1,5	23	22,5	35	75	105	70	48	2	12,0	M5	M5	8	12	8,6	17,6
560028	M30x1,5	28	26,0	41	75	105	70	48	2	12,0	M5	M5	8	16	8,5	17,5
560029	M35x1,5	33	30,5	48	91	134	85	64	2	16,0	M8	M5	12	20	15,0	27,0
560062	M25x1,5	23	22,5	35	75	105	70	48	2	12,0	M5	M5	8	12	8,6	17,6
560063	M30x1,5	28	26,0	41	75	105	70	48	2	12,0	M5	M5	8	16	8,5	17,5
560064	M35x1,5	33	30,5	48	91	134	85	64	2	16,0	M8	M5	12	20	15,0	27,0
92809	M40x1,5	38	30,0	50	73	118	70	34	12	16,0	M 8	M 5	14	25	13,0	26,0
92817	M50x1,5	48	35,0	60	83,5	132	79	43	15	19,0	M 8	G1/8	16	32	15,5	29,5
92825	M55x1,5	53	42,5	70	85,5	136	83	47	15	19,0	M 8	G1/8	16	40	16,5	30,5
92833	M65x1,5	62	47,5	80	92	148	87	50	15	25	M10	G1/8	20	50	14,0	30
92841	M80x1,5	77	50,0	90	98	153	92	55	15	25	M10	G1/8	20	63	13,5	29,5
92858	M40x1,5	38	30,0	50	73	118	70	34	12	16,0	M 8	M 5	14	25	13,0	26,0
92866	M50x1,5	48	35,0	60	83,5	132	79	43	15	19,0	M 8	G1/8	16	32	15,5	29,5
92874	M55x1,5	53	42,5	70	85,5	136	83	47	15	19,0	M 8	G1/8	16	40	16,5	30,5
92882	M65x1,5	62	47,5	80	92	148	87	50	15	25	M10	G1/8	20	50	14,0	30,0
92890	M80x1,5	77	50,0	90	98	153	92	55	15	25	M10	G1/8	20	63	13,5	29,5

Note:
Operate only with lubricated air.

F3 = at 6 bar max. air pressure

* Swing clamps may only be loaded during the clamping stroke Y.
