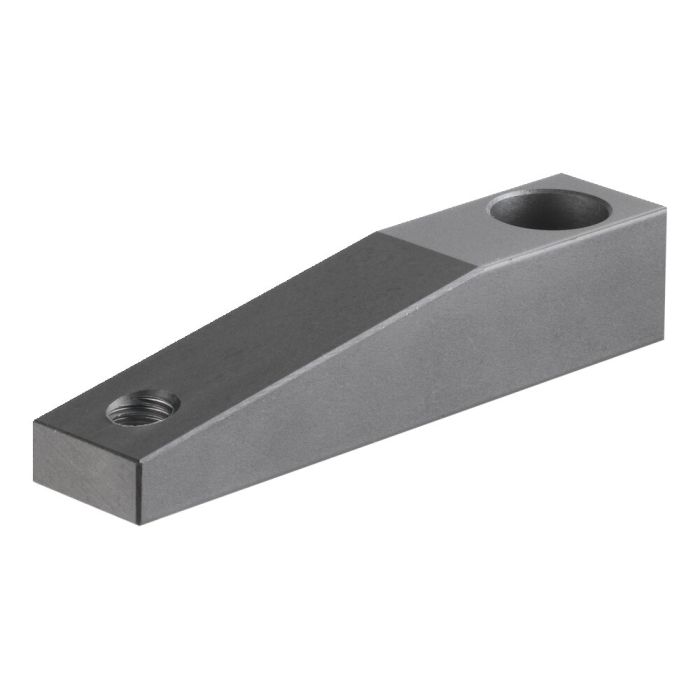

Clamping arm
Size 40, thread M8, length 90 mm
Order no.
93690
Note:
Fitting clamping arm:
1) Set up clamping arm with spring washer and screw without play.
2) Turn clamping arm into position.
3) Hold clamping arm fixed with wrench and tighten screw.
Clamping arm removal:
1) Hold clamping arm fixed with wrench and loosen screw.
2) With light blows from below (plastic hammer), separate clamping arm from the piston rod.
Caution! No side blows permitted!
| Order no. | 93690 |
|---|---|
| Product type | Swing clamp |
| Größe Schnellspanner | 40 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing clamp, pneumatic, flange-mounting version Nr. 93500 Size 40, max. clamping force 0,45 kN, right swinging
- Swing clamp, pneumatic, block version Nr. 91546 Size 40, max. clamping force 0,45 kN, right swinging
- Swing clamp, pneumatic, screw-in version Nr. 92825 Size 40, max. clamping force 0,45 kN, right swinging
- Swing Clamp with welding protection, pneumatic Nr. 91611 Size 40, max. clamping force 0,6 kN, right swinging
