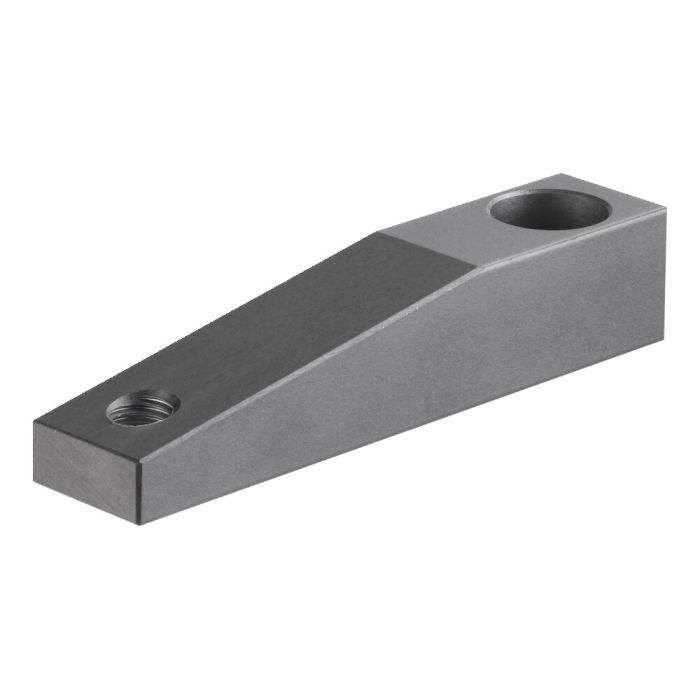

Clamping arm
Size 63, thread M12, length 115 mm
Order no.
93716
Note:
Fitting clamping arm:
1) Set up clamping arm with spring washer and screw without play.
2) Turn clamping arm into position.
3) Hold clamping arm fixed with wrench and tighten screw.
Clamping arm removal:
1) Hold clamping arm fixed with wrench and loosen screw.
2) With light blows from below (plastic hammer), separate clamping arm from the piston rod.
Caution! No side blows permitted!
| Order no. | 93716 |
|---|---|
| Product type | Swing clamp |
| Größe Schnellspanner | 63 |
