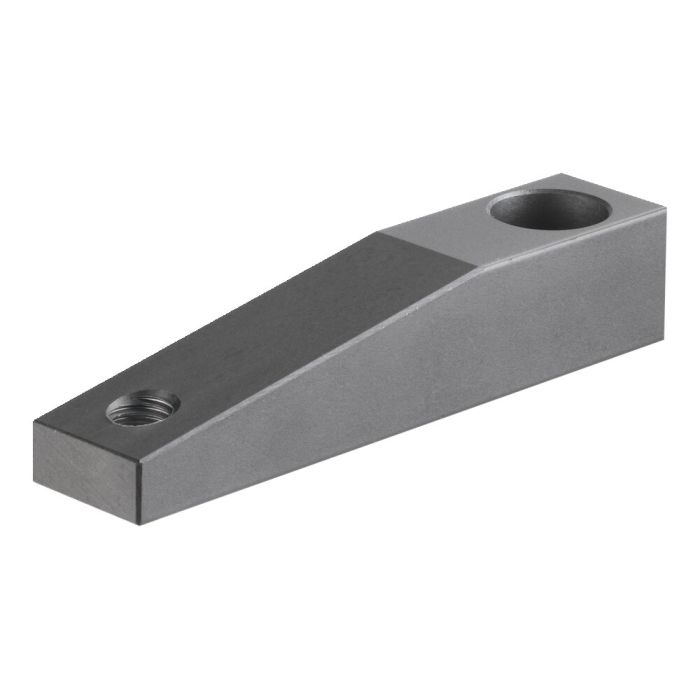

Clamping arm
Size 50, thread M12, length 105 mm
Order no.
93708
Note:
Fitting clamping arm:
1) Set up clamping arm with spring washer and screw without play.
2) Turn clamping arm into position.
3) Hold clamping arm fixed with wrench and tighten screw.
Clamping arm removal:
1) Hold clamping arm fixed with wrench and loosen screw.
2) With light blows from below (plastic hammer), separate clamping arm from the piston rod.
Caution! No side blows permitted!
| Order no. | 93708 |
|---|---|
| Product type | Swing clamp |
| Größe Schnellspanner | 50 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Swing clamp, pneumatic, flange-mounting version Nr. 93518 Size 50, max. clamping force 0,7 kN, right swinging
- Swing clamp, pneumatic, screw-in version Nr. 92833 Size 50, max. clamping force 0,7 kN, right swinging
- Swing Clamp with welding protection, pneumatic Nr. 91637 Size 50, max. clamping force 0,9 kN, right swinging
