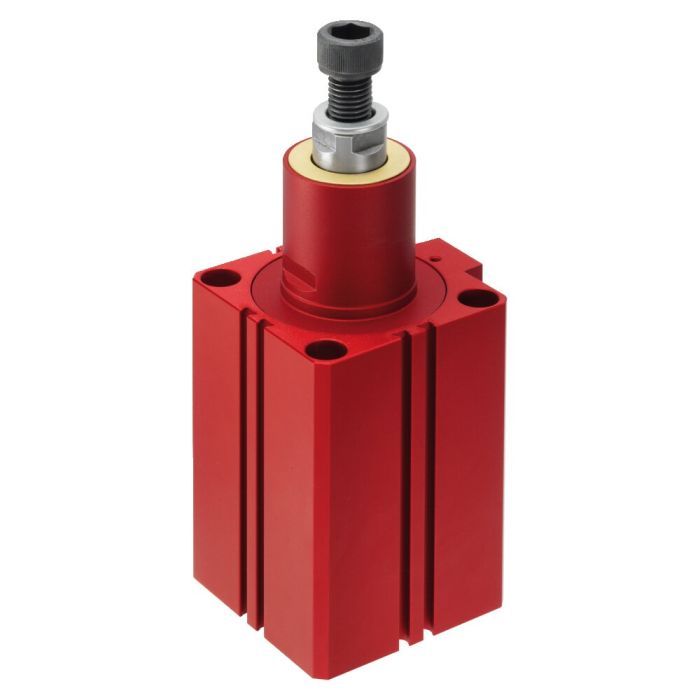

Swing Clamp with welding protection, pneumatic
Size 50, max. clamping force 0,9 kN, right swinging
Order no.
91637
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Design: PUR cable 0.3 m with M8 plug connection and rotating knurled nuts.
Switching function: NOC. Output: PNP.
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
* Swing clamps may only be loaded during the clamping stroke Y.
| Order no. | 91637 |
|---|---|
| Product type | Swing clamp |
| Max. clamping force [kN] | 0.9 |
| Größe Schnellspanner | 50 |
| Material | Aluminium, red anodised |
| Swing direction | Right swinging |
