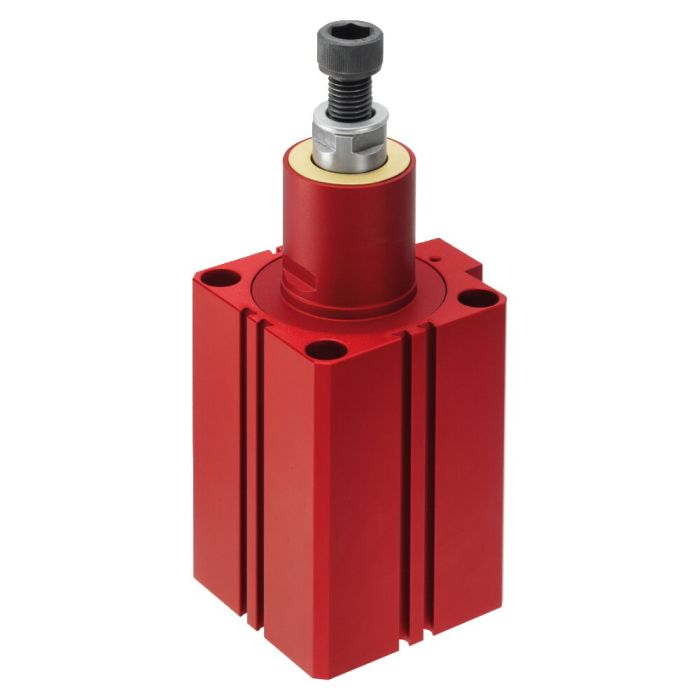

Swing Clamp with welding protection, pneumatic
Size 25, max. clamping force 0,2 kN, left swinging
Order no.
92361
Note:
Suitable proximity switches for end-position monitoring are available using order no. 392241.
Design: PUR cable 0.3 m with M8 plug connection and rotating knurled nuts.
Switching function: NOC. Output: PNP.
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
* Swing clamps may only be loaded during the clamping stroke Y.
| Order no. | 92361 |
|---|---|
| Product type | Swing clamp |
| Max. clamping force [kN] | 0.2 |
| Größe Schnellspanner | 25 |
| Material | Aluminium, red anodised |
| Swing direction | Left swinging |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
