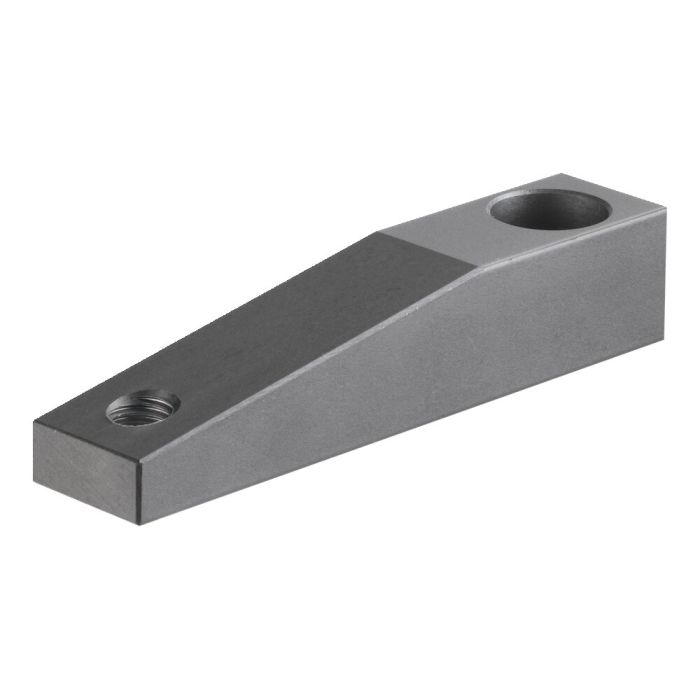

Clamping arm
Size 16, thread M4, length 51 mm
Order no.
92494
Note:
Fitting clamping arm:
1) Set up clamping arm with spring washer and screw without play.
2) Turn clamping arm into position.
3) Hold clamping arm fixed with wrench and tighten screw.
Clamping arm removal:
1) Hold clamping arm fixed with wrench and loosen screw.
2) With light blows from below (plastic hammer), separate clamping arm from the piston rod.
Caution! No side blows permitted!
| Order no. | 92494 |
|---|---|
| Product type | Swing clamp |
| Größe Schnellspanner | 16 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Swing clamp, pneumatic, flange-mounting version Nr. 560011 Size 16, max. clamping force 0,06 kN, right swinging
- Swing clamp, pneumatic, block version Nr. 91504 Size 16, max. clamping force 0,06 kN, right swinging
- Swing clamp, pneumatic, screw-in version Nr. 560063 Size 16, max. clamping force 0,06 kN, right swinging
