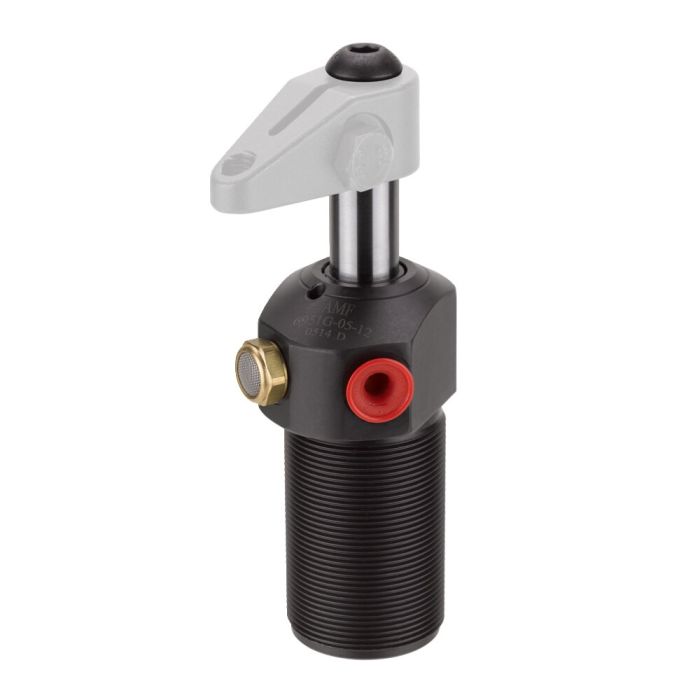

Swing Clamp, thread-flange-mounting

Design:
Cylinder barrel made of steel, hardened and burnished. Piston rod case hardened and chrome plated. Piston rod with internal thread and clamp arm positioning. Wiper at the piston rod. Return spring from stainless steel. Clamp arm not supplied as standard. Oil supply via threaded port.

Application:
Swing clamps are used particularly in fixtures in which the workpiece must be freely accessible and placed from above. Workpieces with difficult shapes can also be clamped using special clamp arms (available on request).

Features:
Each cylinder size is available for single or double-acting operation. The swing motion employs a patented ball guide mechanism.

Note:
The piston is guided, and so the max. permissable oil flow rate Q max. as well as the clamping arm length and weight must be observed. When mounting accessories at the piston, no force may be applied to the piston. For single-acting cylinders, there is risk of sucking in coolant through the breather port. In such cases the breather port has to be moved to a clean protected area via a connection line. When installing, ensure that all air is bled from the system. Grooved nuts DIN 70852 can also be used for attachment.
Other swivel angles are available on request.

Ending of item no.: -11 = single-action, right-pivoting / -12 = single-action, left-pivoting

* details with clamp arm, standard
