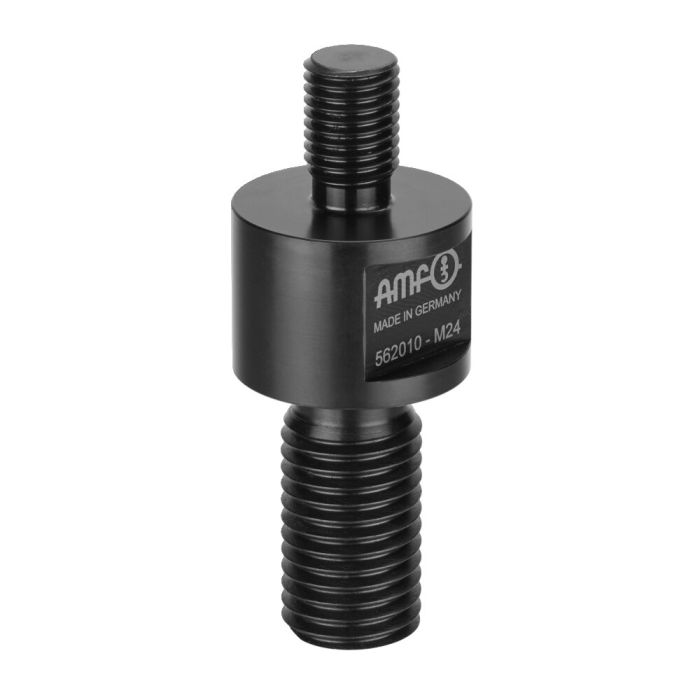

Thread adapter
Thread M24, height 101,5 mm
Order no.
562010
Application:
The thread adapters are screwed in the base element 6425FB and can thus be used on T-slots and grid plates. The insertion tool makes it easy to use the thread adapter.
| Order no. | 562010 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 29.5 |
| Max. height [mm] | 29.5 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw jack element with acme thread and base element 6425FB Nr. 562002 Centring hole diameter 12 mm, height 306-406 mm
- Insertion tool Nr. 562014 Makes it possible to use the head and base elements of the screw jack modular as well as thread adapter
