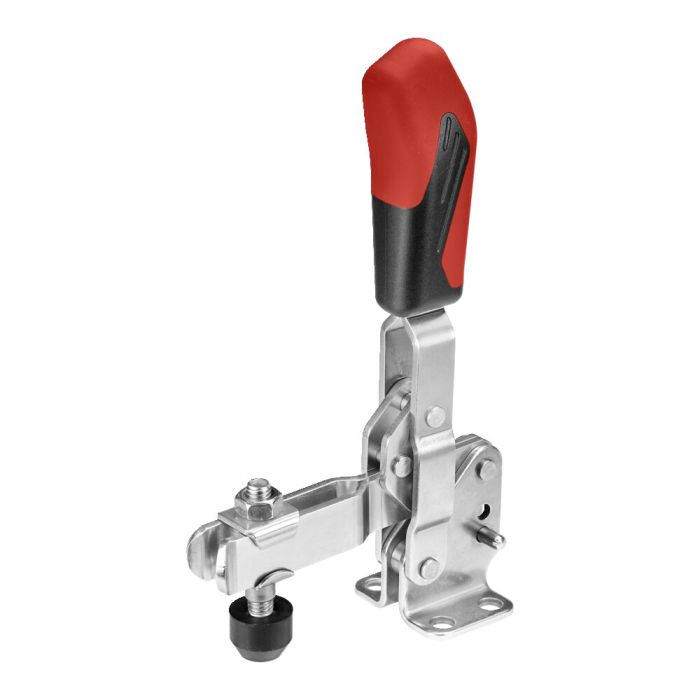

Vertical toggle clamp with red handle

With open clamping arm and horizontal base, size 1, max. clamping force 1,1 kN

Order no.

95026

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
95000	0	0,5	0,7	M4x25	60
95026	1	0,6	1,1	M5x30	105
95042	2	0,8	1,2	M6x35	175
95067	3	1,2	2,5	M8x45	410
95083	4	1,7	3,0	M8x65	630

* The opening angle can be changed by pressing in a stop pin.

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Vertical toggle clamp with red handle Nr. 90001 With open clamping arm and horizontal base, size 0, max. clamping force 0,7 kN

Wish List Compare

Your price:
Horizontal toggle clamp with red handle Nr. 95141 With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN

Wish List Compare

Your price:
Push-pull type toggle clamp with red handle Nr. 95265 With small angle base, size 0, max. clamping force 0,8 kN

Wish List Compare

Your price:
Horizontal hook-type toggle clamp with red handle Nr. 95521 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:
Vertical hook-type toggle clamp with red handle Nr. 95588 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:

Order no.	A	b	C	D	E	F	H	H1	HW min.	HW max.	I	k	L	L1	L2	m	M1	N	P	α	α*
95000	4	31	8,5-13,5	4,5	14	5,5	18	81	-1,5	3,5	8	5,5	-	49	50	23	-	32	22	95°	-
95026	5	39	16	4,5	18	6	19	98	-4	2	10	5,5	-	61	58	22-26	-	34	27	95°	-
95042	6	52	20	5,5	25	11	23	129	-3,3	4,5	12	6	12,5	78	80	23-31	27	43	32	105°	60°
95067	8	79	20	7,5	37	19	33	186	3	10,5	18	7,5	-	112	112	32	-	46	35	105°	60°
95083	10	101	32	8,6	54	16	42,5	221	-6	19,5	20	13	-	141	130	45	-	64	53	105°	60°
