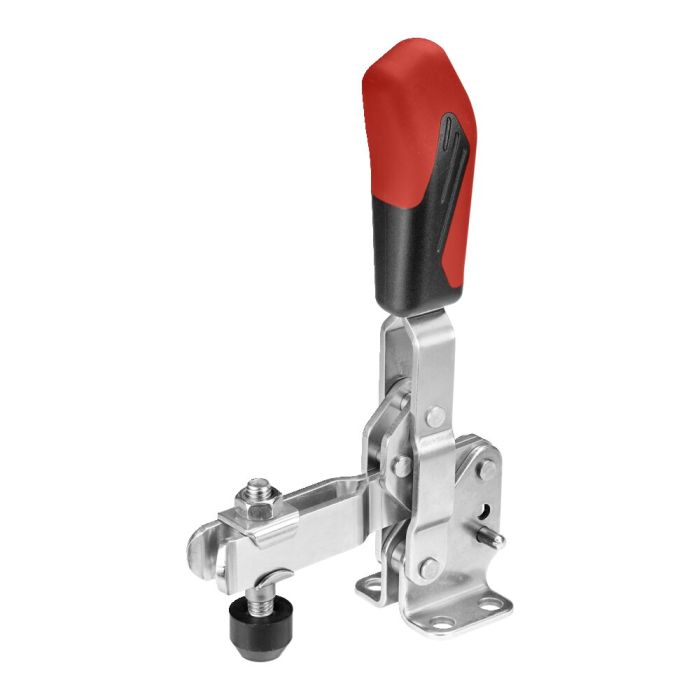

Vertical toggle clamp with red handle

With open clamping arm and horizontal base, size 2, max. clamping force 1,2 kN

Order no.

95042

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
95000	0	0,5	0,7	M4x25	60
95026	1	0,6	1,1	M5x30	105
95042	2	0,8	1,2	M6x35	175
95067	3	1,2	2,5	M8x45	410
95083	4	1,7	3,0	M8x65	630

* The opening angle can be changed by pressing in a stop pin.

CAD
