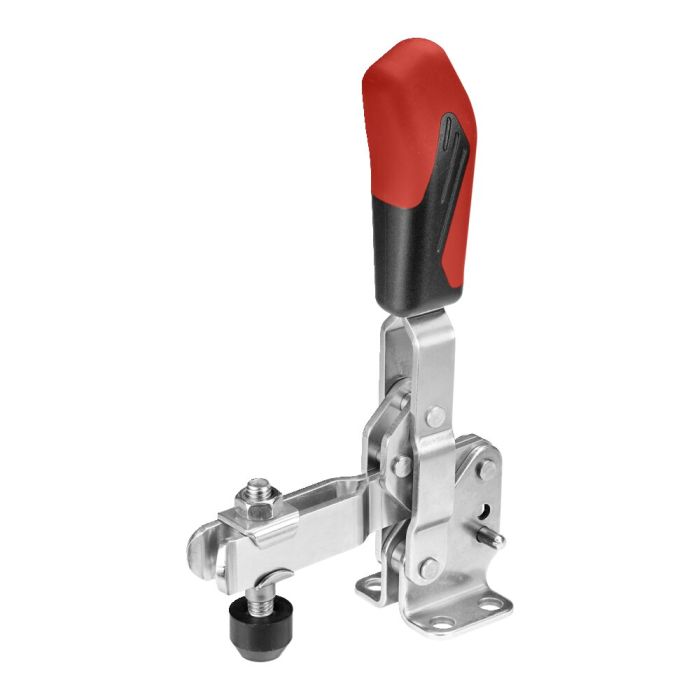

Vertical toggle clamp with red handle

With open clamping arm and horizontal base, size 4, max. clamping force 3 kN

Order no.

95083

Order no.	Size	F1 [kN]	F2 [kN]	Clamping screw	Weight [g]
95000	0	0,5	0,7	M4x25	60
95026	1	0,6	1,1	M5x30	105
95042	2	0,8	1,2	M6x35	175
95067	3	1,2	2,5	M8x45	410
95083	4	1,7	3,0	M8x65	630

* The opening angle can be changed by pressing in a stop pin.

CAD

Pimcore content from synoa_downloadsnk_downloads_tab_top

Area	Language	File name	Type	File size

Pimcore content from synoa_downloadsnk_downloads_tab_bottom

Similar products

Vertical toggle clamp with red handle Nr. 90001 With open clamping arm and horizontal base, size 0, max. clamping force 0,7 kN

Wish List Compare

Your price:
Horizontal toggle clamp with red handle Nr. 95141 With open clamping arm and horizontal base, size 0, max. clamping force 0,4 kN

Wish List Compare

Your price:
Push-pull type toggle clamp with red handle Nr. 95265 With small angle base, size 0, max. clamping force 0,8 kN

Wish List Compare

Your price:
Horizontal hook-type toggle clamp with red handle Nr. 95521 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:
Vertical hook-type toggle clamp with red handle Nr. 95588 Size 2, max. clamping force 1,6 kN

Wish List Compare

Your price:

Order no.	A	b	C	D	E	F	H	H1	HW min.	HW max.	I	k	L	L1	L2	m	M1	N	P	α	α*
95000	4	31	8,5-13,5	4,5	14	5,5	18	81	-1,5	3,5	8	5,5	-	49	50	23	-	32	22	95°	-
95026	5	39	16	4,5	18	6	19	98	-4	2	10	5,5	-	61	58	22-26	-	34	27	95°	-
95042	6	52	20	5,5	25	11	23	129	-3,3	4,5	12	6	12,5	78	80	23-31	27	43	32	105°	60°
95067	8	79	20	7,5	37	19	33	186	3	10,5	18	7,5	-	112	112	32	-	46	35	105°	60°
95083	10	101	32	8,6	54	16	42,5	221	-6	19,5	20	13	-	141	130	45	-	64	53	105°	60°
