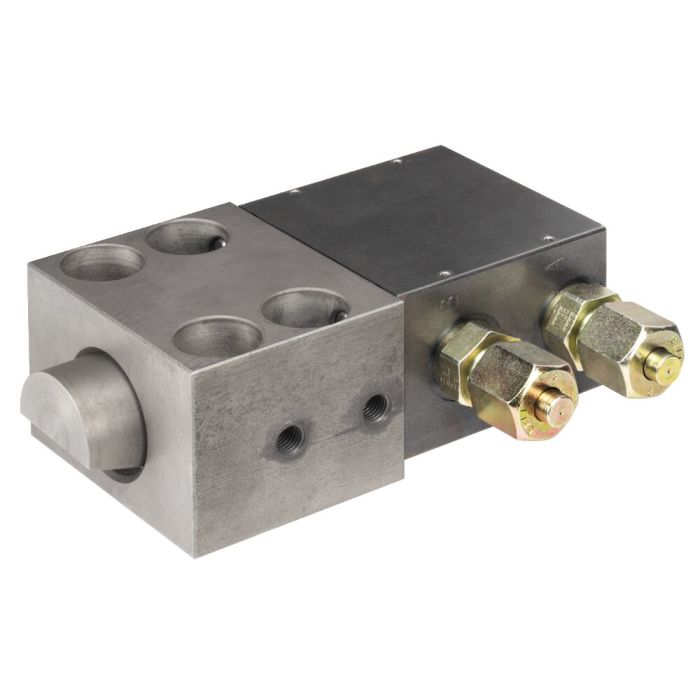

Wedge clamp
Max. operating pressure 350 (400*) bar, max. clamping force 25 kN, without position monitoring
Order no.
325134
Design:
Block cylinder housing from steel, burnished. Housing and clamping bolt tempered. Piston rod case hardened and ground. The fastening screws are included in the supply scope resistance 12.9.
Application:
Wedge clamps are used for clamping the tools on presses and injection moulding machines. The clamping bolt clamps at a 20° diagonal to the tool, which results in a friction connection.
Note:
The maximum permitted load per clamp must not be exceeded. The clamping force acts vertically on the clamping point which applies very low sliding forces to the tool.
| Order no. | 325134 |
|---|---|
| Product type | Clamping elements |
| Max. clamping force [kN] | 25 |
