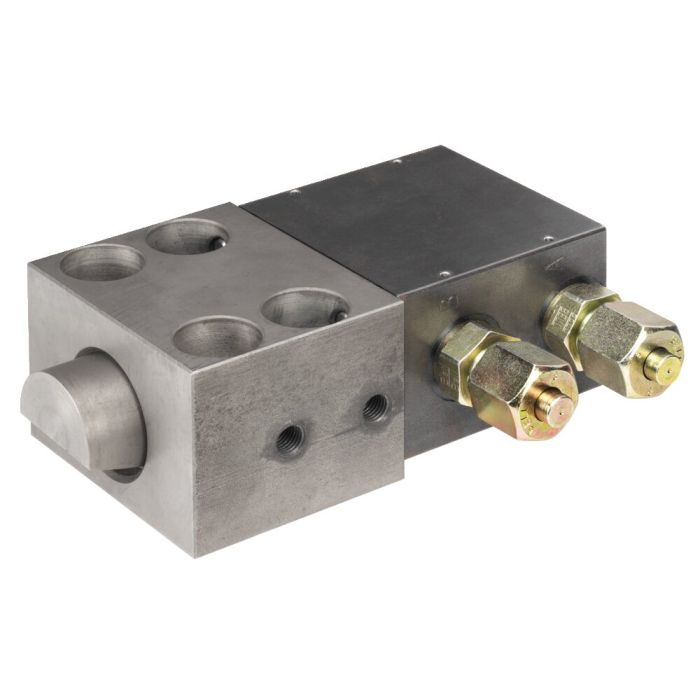

Max. operating pressure 350 (400*) bar, max. clamping force 100 kN, with positioning monitoring
Order no.
325183
You do not have access to availabilities (Ampel). Please contact us!
double-acting max. operating pressure 350 bar (400 bar*).
* When using fixing screws of 10.9 quality a maximum operating force of 400 bar is permitted. A mounting surface with corresponding thread resistance (at least corresponding to St 50) is required.
Design: Cylinder body made of tempering steel. External, vertical surfaces painted yellow. Complete with two clamping pistons No. 6945-15-10 and cover plates.
Application: Clamping stud No. 6945-02-04-***, which is screwed into the tool, is gripped hydraulically when it has entered the opening in the clamping-pin chuck.
Note: No DIN clamping studs must be used for the clamping stud holder. Mounting holes can be incorporated on request. Untoleranced dimensions are to DIN ISO 2768 medium.
On request: Special versions available on request.
