4-point clamping station
Pneumatic unlocking, size KP10.3
Order no.
550251
Design:

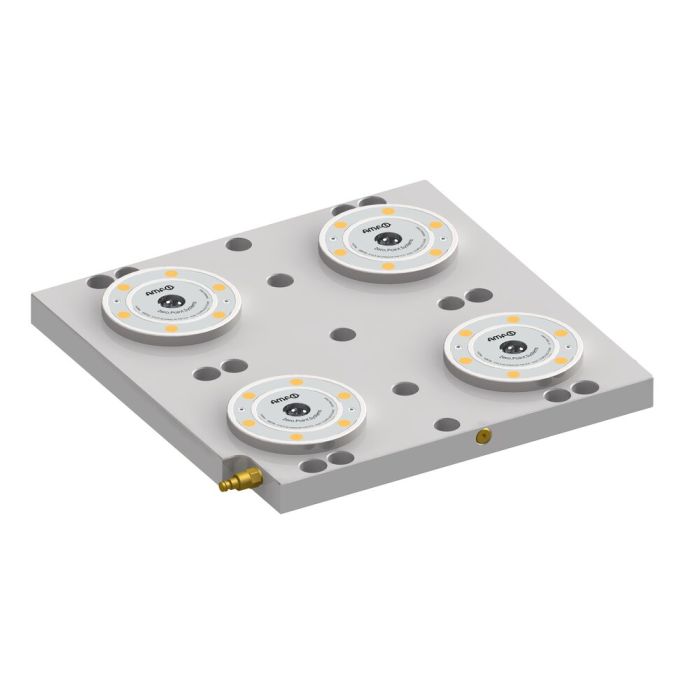

Pneumatic clamping station for setting time-optimised clamping on machine tables with groove spacing of 63, 100 and 125 mm. Fastening is via M12 socket head screws. At least two fitting bores are attached for alignment. The insertion dimension of the clamping modules is 200 mm. The pneumatic quick-coupler is premounted.
Note:
* Please observe the installation instructions.
We recommend a maintenance unit for operation of the clamping station. A matching product can be found in “Single and multiple clamping systems” under order number 301929.
Advantage:
- Low overall height
| Order no. | 550251 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Cover caps for clamping module Nr. 428664 For the mounting screws of the clamping modules KH10.2, KP10.3 and KP20.3
Similar products
- Installation clamping module for automation solutions Nr. 550261 Pneumatic opening, size KP10.3, with locking control, opening control, support control, pull-stud sensing and insular support
