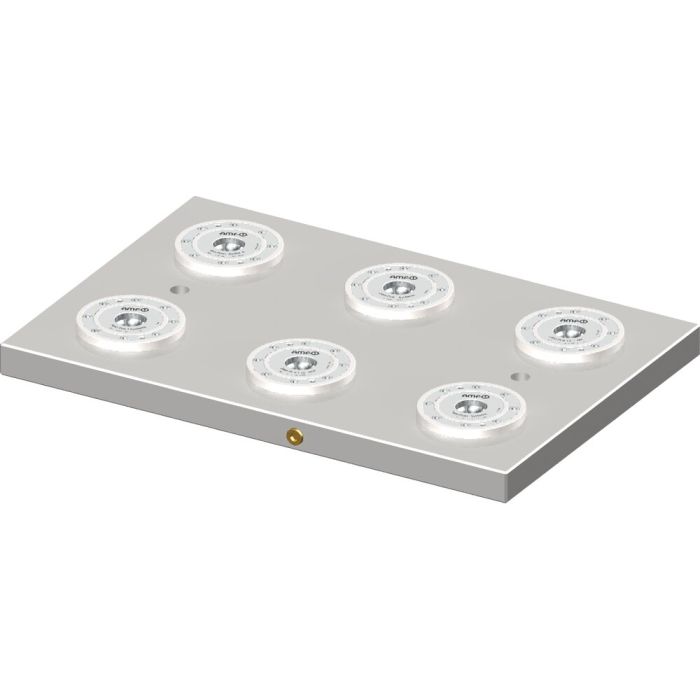

6-point clamping station
Hydraulic unlocking, size KH10
Order no.
426734
Note:
On request, we can incorporate fastening bores in the base plate according to your requirements.
The correct quick-release coupling is available under the order no.:
- 427872 for sleeve
- 427856 for plug
* Please observe the installation instructions.
On request:
Other dimensions, insertion dimensions and number of clamping nipples equipped.
| Order no. | 426734 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Cover caps for clamping pallets Nr. 430165 For cylinder and positioning boreholes in clamping stations, size M12
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
