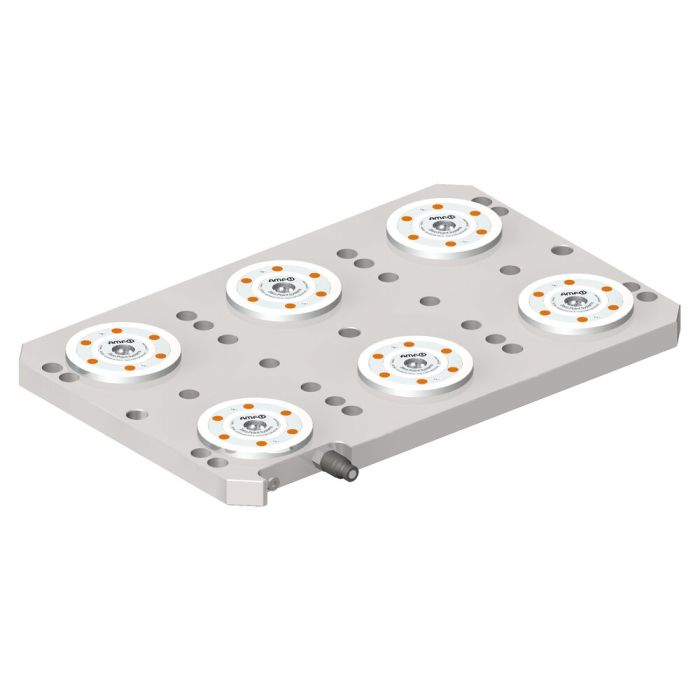

6-point clamping station
Hydraulic unlocking, size KH10.2
Order no.
427526
Design:
Hydraulic clamping station for optimised clamping times on machine tables with distance between slots of 63, 100 and 125 mm. Clamping is with M12 socket head screws. At least two fitting holes are attached for alignment.
The insertion dimension of the clamping modules is 200 mm. The quick coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
Note:
* Please observe the installation instructions.
Advantage:
Low overall height of only 36 mm.
| Order no. | 427526 |
|---|---|
| Product type | Clamping stations |
| Operating mode | Hydraulic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Pull-stud size 10 for M10 engagement screw Nr. 554936 For clamping modules size 10, zero point pull-stud
- Cover caps for clamping pallets Nr. 430165 For cylinder and positioning boreholes in clamping stations, size M12
