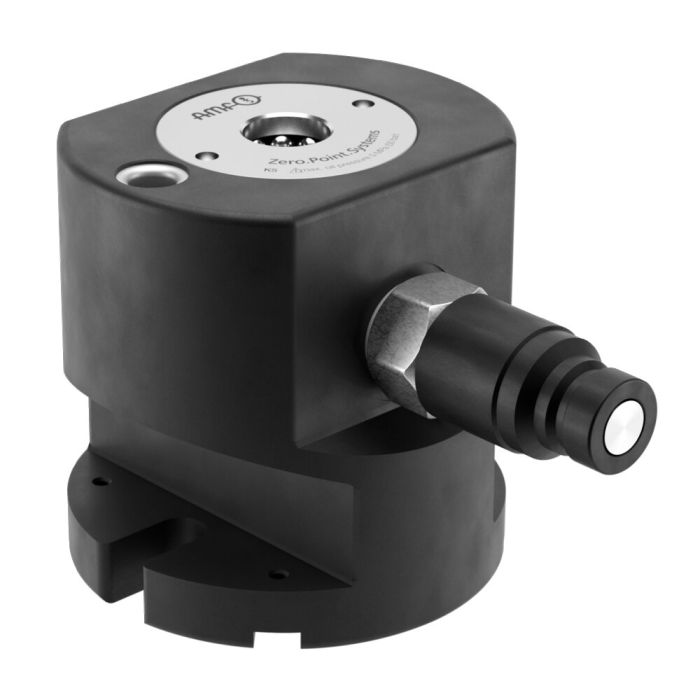

Adapter clamping module B10 to BH5, hydr. with indexing
Application:
The adapter element is used to reduce the intermediate element size B10 to the hydraulic clamping module BH5. Workpieces or fixtures can be clamped with repetition accuracy directly onto the hydraulic clamping module BH5 using pull-studs.
This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table.
Thanks to the indexing option, workpieces under large machining forces can be secured to prevent radial distortion.
Note:
Order no. for the centering sleeve Ø 15 mm: 535732
Order no. for the slot nuts: 430264
The hydr. quick-release coupling, connector version, and the fastening screws are supplied as standard.
* Please observe the installation instructions.
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 534719 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Hydraulic |
| Size clamping module | 5 |
| Holding force [kN] | 13 |
| Pull-in/locking force [kN] | 5 |
| Special features | With indexierung |
