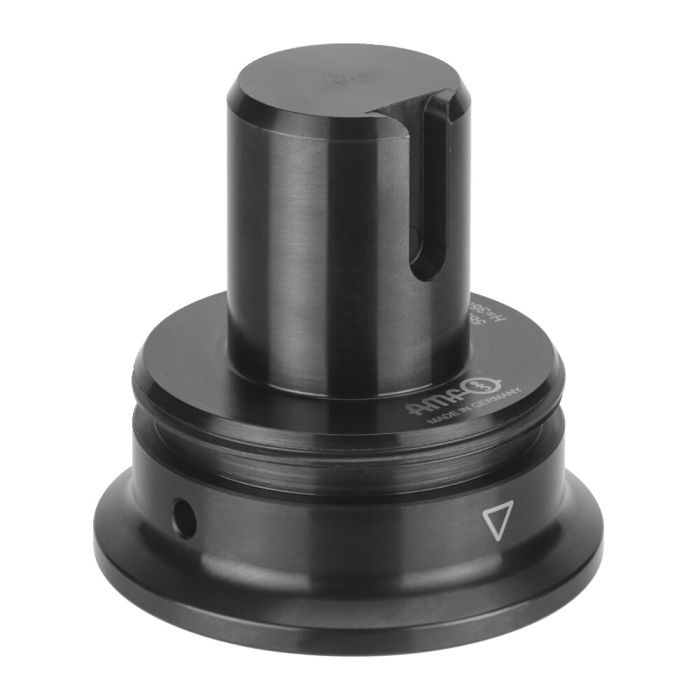

Base element
⌀ 90 mm, height 36 mm
Order no.
562005
Application:
Can be used on T-slots and grid plates by means of adapters, which are screwed in the base element. The individual elements are plugged together and connected by means of a threaded ring ensuring process reliability. The insertion tool makes it possible to use the base element as well as thread adapter.
| Order no. | 562005 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 36 |
| Max. height [mm] | 36 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw jack element with acme thread and base element 6425FB Nr. 562002 Centring hole diameter 12 mm, height 306-406 mm
- Insertion tool Nr. 562014 Makes it possible to use the head and base elements of the screw jack modular as well as thread adapter
