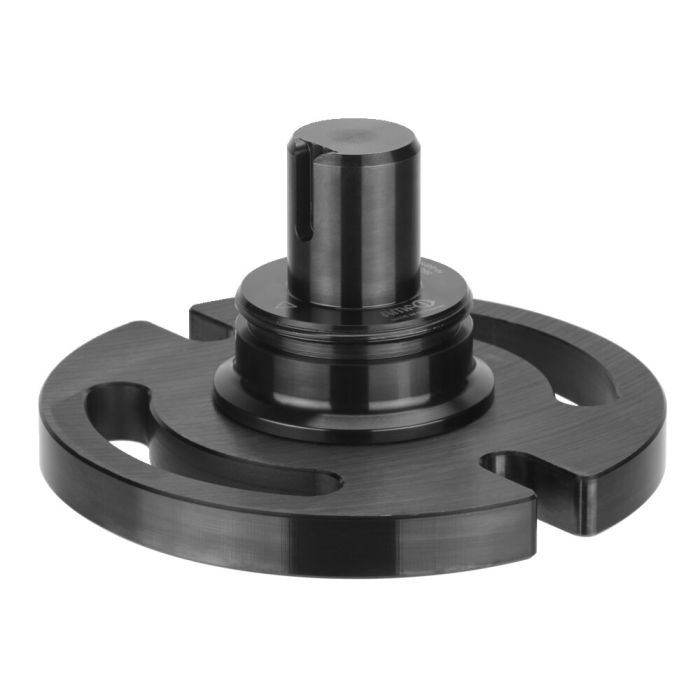

Base element
⌀ 90 mm, height 56 mm
Order no.
562006
Application:
Can be used on T-slots and grid plates. The individual elements are plugged together and connected by means of a threaded ring ensuring process reliability. The insertion tool makes it possible to use the base element as well as thread adapter.
Advantage:
- Enables variable positioning on the machine table.
- The threaded interface allows the base element to be replaced easily on the modular screw jack.
| Order no. | 562006 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 56 |
| Max. height [mm] | 56 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw jack element with acme thread and base element 6425FB Nr. 562002 Centring hole diameter 12 mm, height 306-406 mm
- Insertion tool Nr. 562014 Makes it possible to use the head and base elements of the screw jack modular as well as thread adapter
