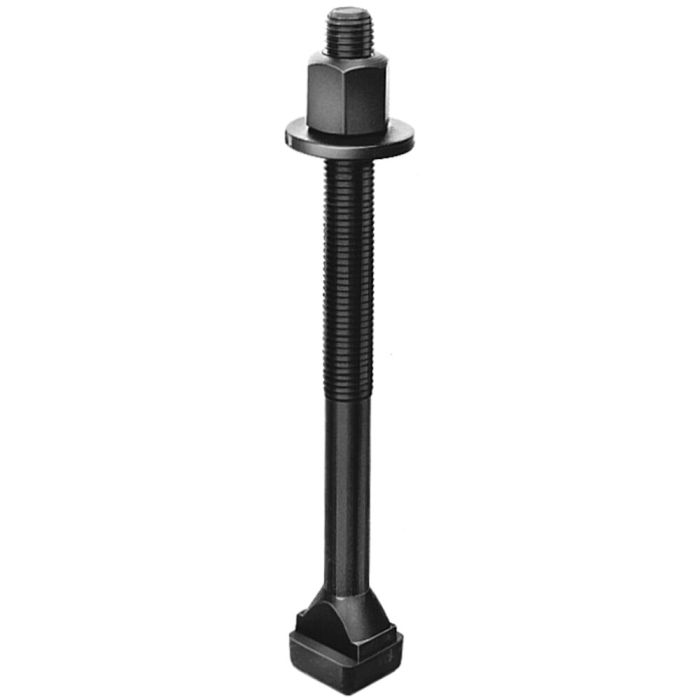

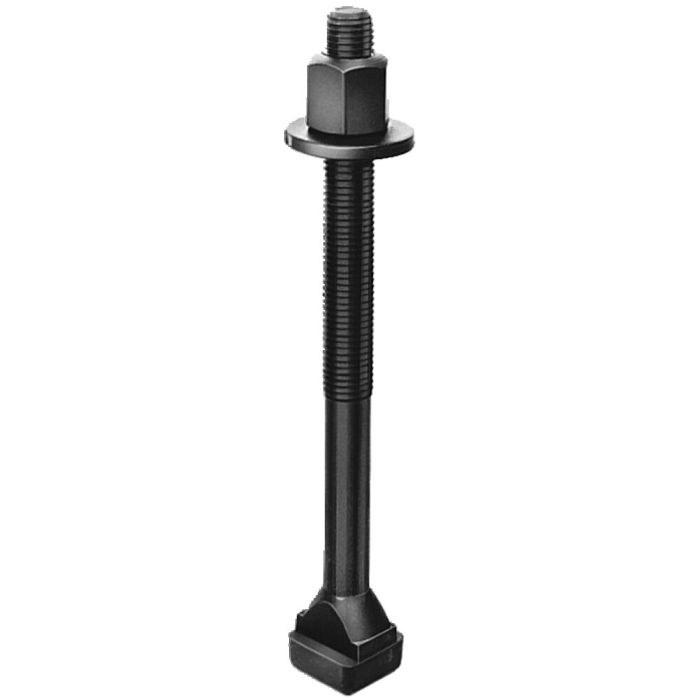

Bolts for T-slots, complete
Strength class 8.8, thread M36, slot 42 mm, length 400 mm
Order no.
81190
You do not have access to availabilities (Ampel). Please contact us!
With DIN 787 screws for T-slots, hexagon nut DIN 6330B and washer DIN 6340.
Forged, T-slot guide cleared, rolled thread, stamped with AMF logo and strength class. M6 to M12 tempered to strength class 10.9, M14 to M42 tempered to strength class 8.8.
| Order no. | D x Slot x L | Strength class | A | b | E | k | S | Weight [g] | Availability | Your Price |
|---|---|---|---|---|---|---|---|---|---|---|
| 80812 | M8x8x50 | 10,9 | 7,7 | 35 | 13 | 6 | 13 | 45 | | |
| 80820 | M8x8x80 | 10,9 | 7,7 | 50 | 13 | 6 | 13 | 55 | | |
| 80838 | M10x10x63 | 10,9 | 9,7 | 45 | 15 | 6 | 16 | 80 | | |
| 80846 | M10x10x100 | 10,9 | 9,7 | 60 | 15 | 6 | 16 | 110 | | |
| 80853 | M12x12x50 | 10,9 | 11,7 | 35 | 18 | 7 | 18 | 120 | | |
| 80861 | M12x12x80 | 10,9 | 11,7 | 55 | 18 | 7 | 18 | 130 | | |
| 80879 | M12x12x125 | 10,9 | 11,7 | 75 | 18 | 7 | 18 | 170 | | |
| 80887 | M12x12x200 | 10,9 | 11,7 | 120 | 18 | 7 | 18 | 220 | | |
| 80895 | M12x14x50 | 10,9 | 13,7 | 35 | 22 | 8 | 18 | 130 | | |
| 80903 | M12x14x80 | 10,9 | 13,7 | 55 | 22 | 8 | 18 | 155 | | |
| 80911 | M12x14x125 | 10,9 | 13,7 | 75 | 22 | 8 | 18 | 180 | | |
| 80929 | M12x14x200 | 10,9 | 13,7 | 120 | 22 | 8 | 18 | 240 | | |
| 80937 | M14x16x63 | 8,8 | 15,7 | 45 | 25 | 9 | 21 | 200 | | |
| 80945 | M14x16x100 | 8,8 | 15,7 | 65 | 25 | 9 | 21 | 230 | | |
| 80952 | M14x16x160 | 8,8 | 15,7 | 100 | 25 | 9 | 21 | 310 | | |
| 80960 | M14x16x250 | 8,8 | 15,7 | 120 | 25 | 9 | 21 | 390 | | |
| 80978 | M16x16x63 | 8,8 | 15,7 | 45 | 25 | 9 | 24 | 250 | | |
| 80986 | M16x16x100 | 8,8 | 15,7 | 65 | 25 | 9 | 24 | 290 | | |
| 80994 | M16x16x160 | 8,8 | 15,7 | 100 | 25 | 9 | 24 | 380 | | |
| 81000 | M16x16x250 | 8,8 | 15,7 | 150 | 25 | 9 | 24 | 530 | | |
| 81018 | M16x18x63 | 8,8 | 17,7 | 45 | 28 | 10 | 24 | 260 | | |
| 81026 | M16x18x100 | 8,8 | 17,7 | 65 | 28 | 10 | 24 | 315 | | |
| 81034 | M16x18x160 | 8,8 | 17,7 | 100 | 28 | 10 | 24 | 400 | | |
| 81042 | M16x18x250 | 8,8 | 17,7 | 150 | 28 | 10 | 24 | 560 | | |
| 81059 | M20x22x80 | 8,8 | 21,7 | 55 | 35 | 14 | 30 | 530 | | |
| 81067 | M20x22x125 | 8,8 | 21,7 | 85 | 35 | 14 | 30 | 670 | | |
| 81075 | M20x22x200 | 8,8 | 21,7 | 125 | 35 | 14 | 30 | 750 | | |
| 81083 | M20x22x315 | 8,8 | 21,7 | 190 | 35 | 14 | 30 | 980 | | |
| 81091 | M24x28x100 | 8,8 | 27,7 | 70 | 44 | 18 | 36 | 980 | | |
| 81109 | M24x28x160 | 8,8 | 27,7 | 110 | 44 | 18 | 36 | 1150 | | |
| 81117 | M24x28x250 | 8,8 | 27,7 | 150 | 44 | 18 | 36 | 1500 | | |
| 81125 | M24x28x400 | 8,8 | 27,7 | 240 | 44 | 18 | 36 | 1860 | | |
| 81133 | M30x36x125 | 8,8 | 35,6 | 80 | 54 | 22 | 46 | 1860 | | |
| 81141 | M30x36x200 | 8,8 | 35,6 | 135 | 54 | 22 | 46 | 2230 | | |
| 81158 | M30x36x315 | 8,8 | 35,6 | 200 | 54 | 22 | 46 | 2950 | | |
| 81166 | M30x36x500 | 8,8 | 35,6 | 300 | 54 | 22 | 46 | 3950 | | |
| 81174 | M36x42x160 | 8,8 | 41,6 | 100 | 65 | 26 | 55 | 3220 | | |
| 81182 | M36x42x250 | 8,8 | 41,6 | 175 | 65 | 26 | 55 | 3840 | | |
| 81190 | M36x42x400 | 8,8 | 41,6 | 250 | 65 | 26 | 55 | 4950 | | |
| 81216 | M24x24x100 | 8,8 | 23,7 | 70 | 40 | 16 | 36 | 910 | | |
| 81224 | M24x24x160 | 8,8 | 23,7 | 110 | 40 | 16 | 36 | 1040 | | |
| 81232 | M24x24x250 | 8,8 | 23,7 | 150 | 40 | 16 | 36 | 1410 | | |
| 81240 | M24x24x400 | 8,8 | 23,7 | 240 | 40 | 16 | 36 | 1780 | | |
| 81356 | M10x10x80 | 10,9 | 9,7 | 50 | 15 | 6 | 16 | 90 | | |
| 81448 | M12x12x100 | 10,9 | 11,7 | 65 | 18 | 7 | 18 | 145 | | |
| 81505 | M12x12x160 | 10,9 | 11,7 | 100 | 18 | 7 | 18 | 195 | | |
| 81547 | M20x20x100 | 8,8 | 19,7 | 65 | 32 | 12 | 30 | 570 | | |
| 81562 | M20x20x250 | 8,8 | 19,7 | 150 | 32 | 12 | 30 | 800 | | |
| 81588 | M24x24x315 | 8,8 | 23,7 | 190 | 40 | 16 | 36 | 1640 | | |
| 81604 | M24x28x315 | 8,8 | 27,7 | 190 | 44 | 18 | 36 | 1730 | | |
| 82974 | M12x14x100 | 10,9 | 13,7 | 65 | 22 | 8 | 18 | 165 | | |
| 84186 | M42x48x250 | 8,8 | 47,6 | 175 | 75 | 30 | 65 | 6900 | | |
| 84194 | M42x48x400 | 8,8 | 47,6 | 250 | 75 | 30 | 65 | 8400 | | |
| 84202 | M6x6x25 | 10,9 | 5,7 | 15 | 10 | 4 | 10 | 19 | | |
| 84210 | M6x6x40 | 10,9 | 5,7 | 28 | 10 | 4 | 10 | 22 | | |
| 84236 | M8x8x32 | 10,9 | 7,7 | 22 | 13 | 6 | 13 | 40 | | |
| 84244 | M10x10x40 | 10,9 | 9,7 | 30 | 15 | 6 | 16 | 65 | | |
| 84301 | M20x20x80 | 8,8 | 19,7 | 55 | 32 | 12 | 30 | 520 | | |
| 84319 | M20x20x125 | 8,8 | 19,7 | 85 | 32 | 12 | 30 | 600 | | |
| 84327 | M20x20x200 | 8,8 | 19,7 | 125 | 32 | 12 | 30 | 750 | | |
| 84335 | M20x20x315 | 8,8 | 19,7 | 190 | 32 | 12 | 30 | 940 | | |
| 84376 | M12x14x160 | 10,9 | 13,7 | 100 | 22 | 8 | 18 | 210 | | |
| 84392 | M16x16x125 | 8,8 | 15,7 | 85 | 25 | 9 | 24 | 300 | | |
| 84418 | M16x18x125 | 8,8 | 17,7 | 85 | 28 | 10 | 24 | 360 | | |
| 84442 | M14x16x80 | 8,8 | 15,7 | 55 | 25 | 9 | 21 | 220 | | |
| 84459 | M14x16x125 | 8,8 | 15,7 | 75 | 25 | 9 | 21 | 280 | | |
| 85746 | M12x12x63 | 10,9 | 11,7 | 40 | 18 | 7 | 18 | 128 | | |
| 85753 | M12x14x63 | 10,9 | 13,7 | 45 | 22 | 8 | 18 | 145 | | |
| 85761 | M16x16x80 | 8,8 | 15,7 | 55 | 25 | 9 | 24 | 275 | | |
| 85779 | M16x16x200 | 8,8 | 15,7 | 125 | 25 | 9 | 24 | 435 | | |
| 85787 | M16x18x80 | 8,8 | 17,7 | 55 | 28 | 10 | 24 | 305 | | |
| 85795 | M16x18x200 | 8,8 | 17,7 | 125 | 28 | 10 | 24 | 448 | | |
| 85803 | M20x20x160 | 8,8 | 19,7 | 110 | 32 | 12 | 30 | 680 | | |
| 85811 | M20x22x160 | 8,8 | 21,7 | 110 | 35 | 14 | 30 | 710 | | |
| 85837 | M20x22x100 | 8,8 | 21,7 | 65 | 35 | 14 | 30 | 610 | | |
| 85852 | M20x22x250 | 8,8 | 21,7 | 150 | 35 | 14 | 30 | 850 | | |
| 85860 | M24x24x125 | 8,8 | 23,7 | 85 | 40 | 16 | 36 | 970 | | |
| 85878 | M24x24x200 | 8,8 | 23,7 | 125 | 40 | 16 | 36 | 1265 | | |
| 85886 | M24x28x125 | 8,8 | 27,7 | 85 | 44 | 18 | 36 | 1010 | | |
| 85894 | M24x28x200 | 8,8 | 27,7 | 125 | 44 | 18 | 36 | 1240 | | |
| 85902 | M30x36x160 | 8,8 | 35,6 | 110 | 54 | 22 | 46 | 1950 | | |
| 85910 | M30x36x250 | 8,8 | 35,6 | 150 | 54 | 22 | 46 | 2555 | | |
Note:
AMF quality starts with controlled raw material!
Our fully-automated forging plant produces clamping screws. Once cleared, the thread is rolled.
Advantage:
Benefits of thread rolling:
- no interrupted fibre orientation
- reduced notch sensitivity
- very good roughness values on the thread flanks and in the base radius
| Order no. | 81190 |
|---|---|
| Product type | Bolts for T-slots |
| Thread [M] | 36 |
| Slot [mm] | 42 |
| Length [mm] | 400 |
| Strength class | 8.8 |
