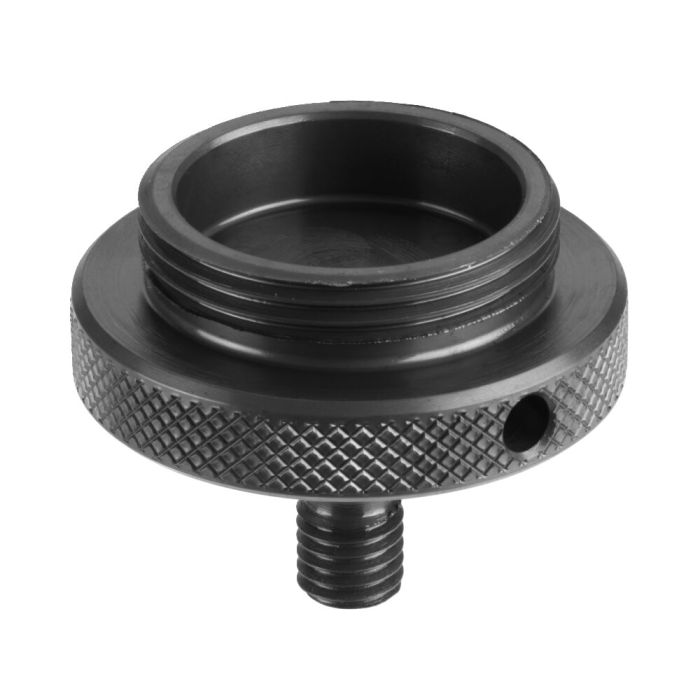

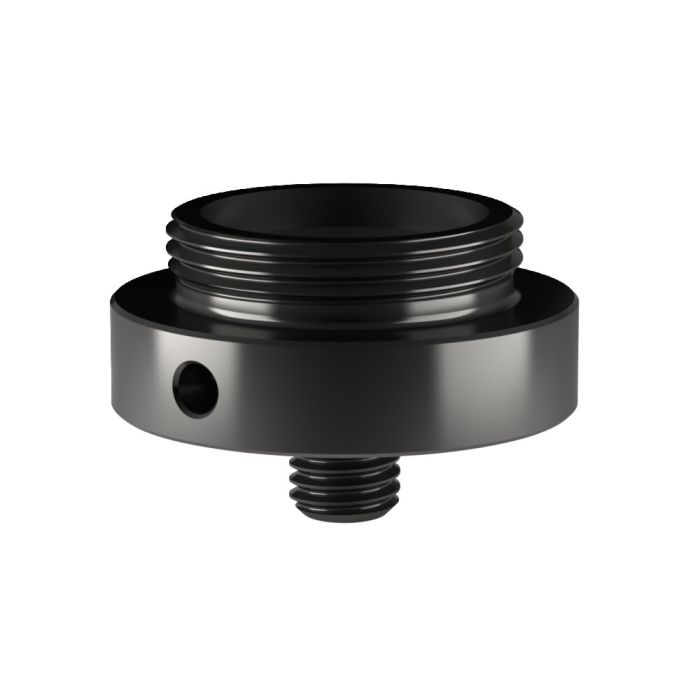

Centring plate with thread
Size M10, height 10 mm, ⌀ 50 mm
Order no.
562125
Application:
Centring plate can be screwed onto screw jacks. The screw jacks can be screwed onto the centring plate.
- Height guide bench 6415
- Screw jack with flat bearing 6400-52 /-70/-100
- Aluminium-screw jack 6401
Note:
The maximum possible support force of the screw jack combination must be adjusted to the support force (Fmax.) of the screw jack used.
| Order no. | 562125 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 10 |
| Max. height [mm] | 10 |
