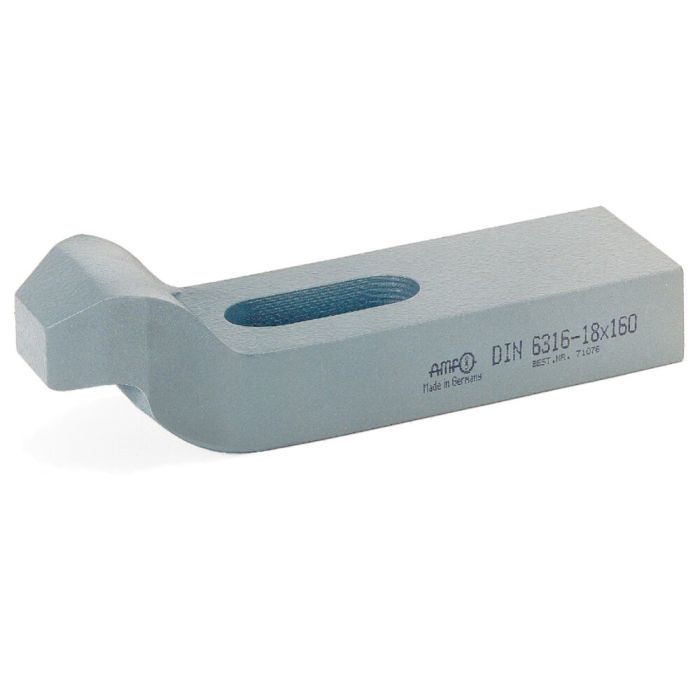

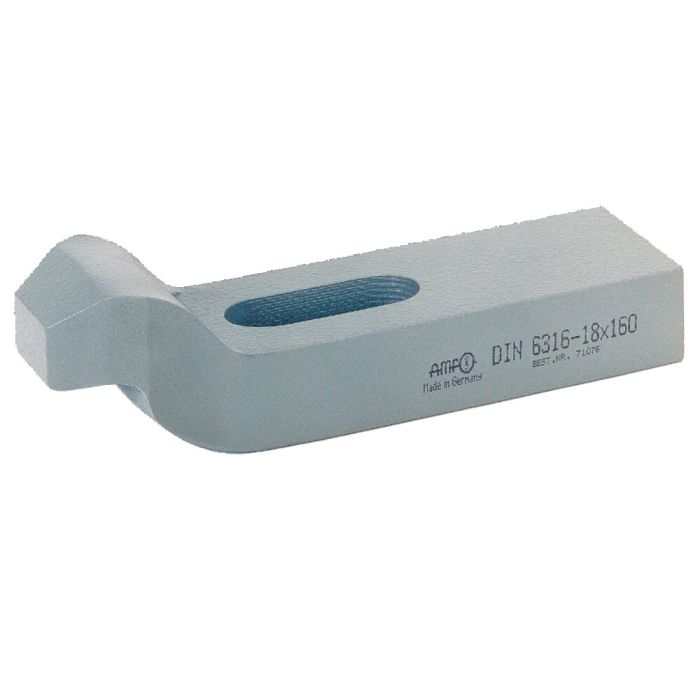

Clamp, cranked
For clamping screw metric M6 and inch 1/4, length 60 mm
| Order no. | B1 | L | for
clamping screw
metric | for
clamping screw
inch | A | b2 | B3 | C | E1 | E2 | H | Weight
[g] | Availability | Your Price |
| 71027 | 6,6 | 60 | M6 | 1/4 | 10 | 20 | 10 | 8 | 20 | 20 | 9 | 81 | | |
| 71035 | 9 | 80 | M8 | 5/16 | 12 | 25 | 12 | 9 | 25 | 25 | 11 | 166 | | |
| 71043 | 11* | 100 | M10 | 3/8 | 15 | 30 | 15 | 12 | 32 | 32 | 14 | 299 | | |
| 71050 | 14 | 125 | M12 M14 | 1/2 | 20 | 40 | 20 | 16 | 40 | 40 | 18 | 678 | | |
| 71068 | 18 * | 125 | M16 M18 | 5/8 | 25 | 50 | 25 | 20 | 49 | 40 | 23 | 1049 | | |
| 71076 | 18 | 160 | M16 M18 | 5/8 | 25 | 50 | 25 | 20 | 49 | 50 | 23 | 1366 | | |
| 71084 | 22 * | 160 | M20 M22 | 3/4 | 30 | 60 | 30 | 24 | 55 | 55 | 27 | 1911 | | |
| 71092 | 22 | 200 | M20 M22 | 3/4 | 30 | 60 | 30 | 24 | 55 | 70 | 27 | 2417 | | |
| 71100 | 26 * | 200 | M24 | 1 | 35 | 70 | 35 | 25 | 72 | 60 | 32 | 3315 | | |
| 71118 | 26 | 250 | M24 | 1 | 35 | 70 | 35 | 25 | 72 | 80 | 32 | 4132 | | |
| 71126 | 33 * | 250 | M30 | 1 1/4 | 40 | 80 | 40 | 40 | 91 | 80 | 45 | 5225 | | |
| 71134 | 33 | 315 | M30 | 1 1/4 | 50 | 80 | 40 | 40 | 91 | 100 | 45 | 8459 | | |
| 71159 | 43 * | 400 | M36 M42 | 1 1/2 1 5/8 | 60 | 100 | 50 | 50 | 105 | 120 | 55 | 17078 | | |
| | | | | | | | | | | | | | |
* Size not included in DIN, dimensions similar to DIN
More Information | Order no. | 71027 |
|---|
| Clamping screw | Without clamping bolt |
|---|
| Clamping screw metric [M] | 6 |
|---|
| Clamping screw inch | 1/4 |
|---|
