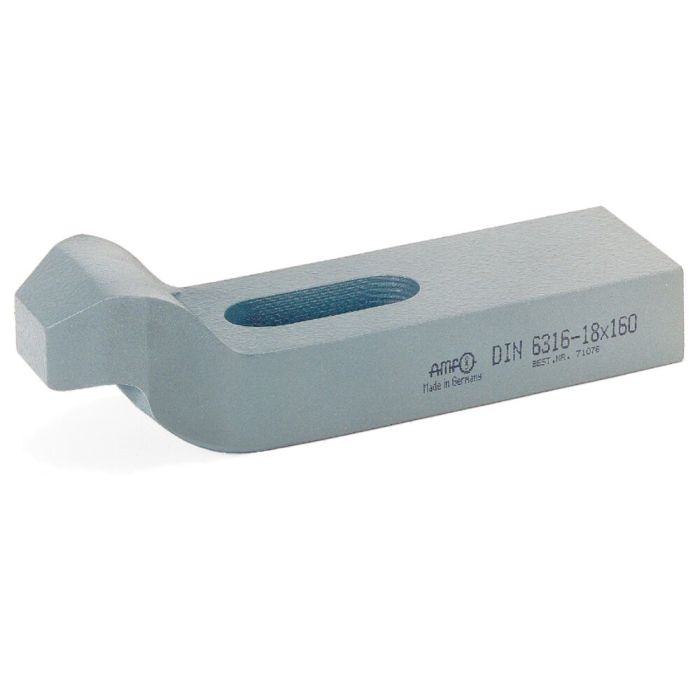

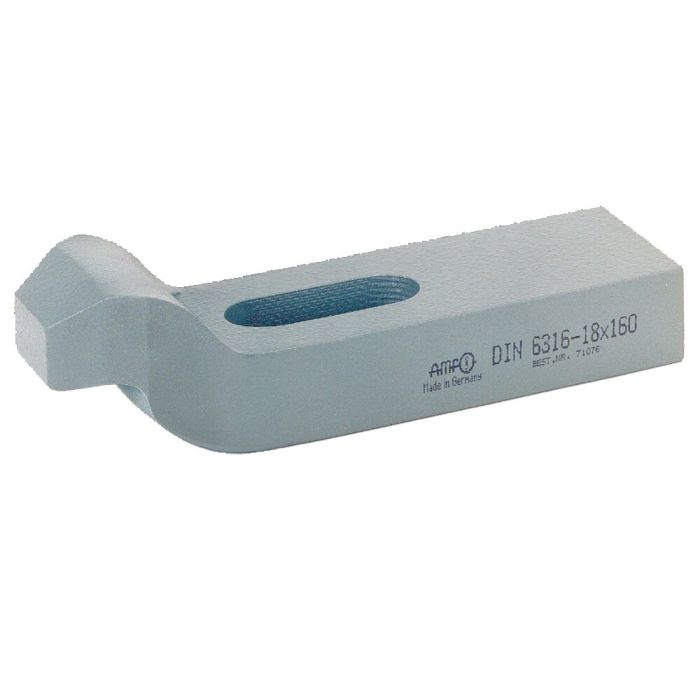

Clamp, cranked
For clamping screw metric M24 and inch 1, length 200 mm
Order no.
71100
* Size not included in DIN, dimensions similar to DIN
| Order no. | 71100 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 24 |
| Clamping screw inch | 1 |
