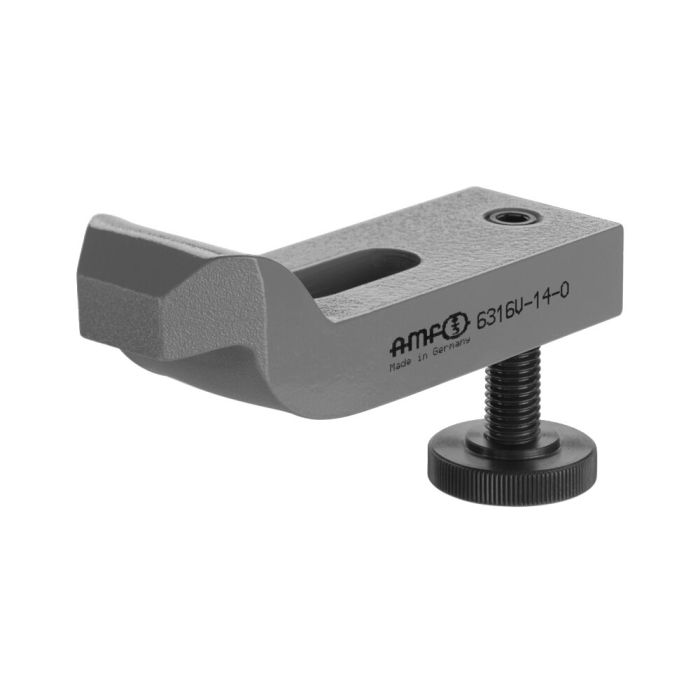

Cranked clamp with adjusting support screw
For clamping screw M24, clamping height 52-115 mm
Order no.
71266
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 71266 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 24 |
| Min. clamping height [mm] | 52 |
| Max. clamping height [mm] | 115 |
