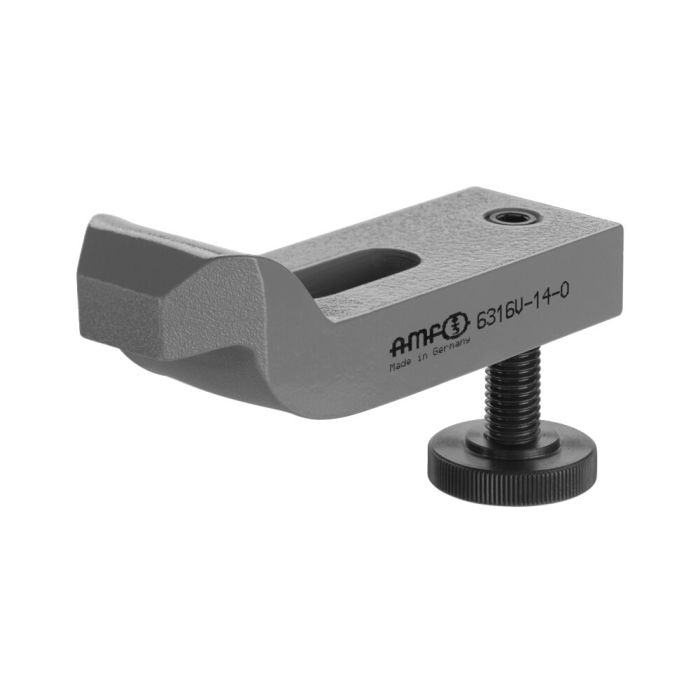

Cranked clamp with adjusting support screw
For clamping screw M20/M22, clamping height 43-92 mm
Order no.
71217
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 71217 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 20, 22 |
| Min. clamping height [mm] | 43 |
| Max. clamping height [mm] | 92 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Hexagonal nuts with collar (1.5 d high) Nr. 82602 Turned, size M22, height 33 mm, thread width 32 mm*
Similar products
- Stepped clamp with adjusting support screw Nr. 74583 For clamping screw M20/M22, clamping height 16-77 mm
- Tapered clamp with adjusting support screw Nr. 70847 For clamping screw M20/M22, clamping height 16-105 mm
- Stepped clamp with adjusting support screw Nr. 71258 For clamping screw M20/M22, clamping height 16-85 mm
- Crocodile clamp Nr. 79913 Max. clamping force 75 kN, slot 20/22/24/28 mm, for clamping screw M20/24, height 0-100 mm, thickness 51 mm
