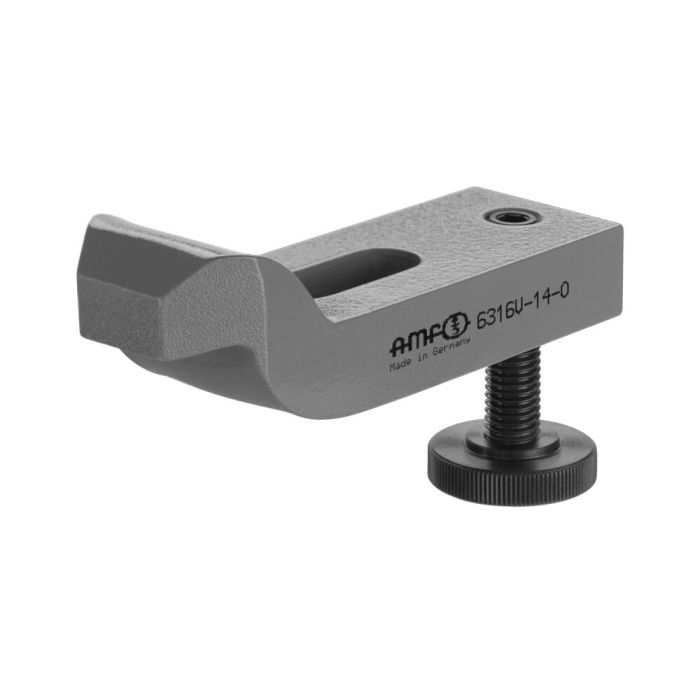

Cranked clamp with adjusting support screw
For clamping screw M12/M14, clamping height 28-65 mm
Order no.
71209
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 71209 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 12, 14 |
| Min. clamping height [mm] | 28 |
| Max. clamping height [mm] | 65 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Hexagonal nuts with collar (1.5 d high) Nr. 82248 Turned, size M14, height 21 mm, thread width 21 mm
