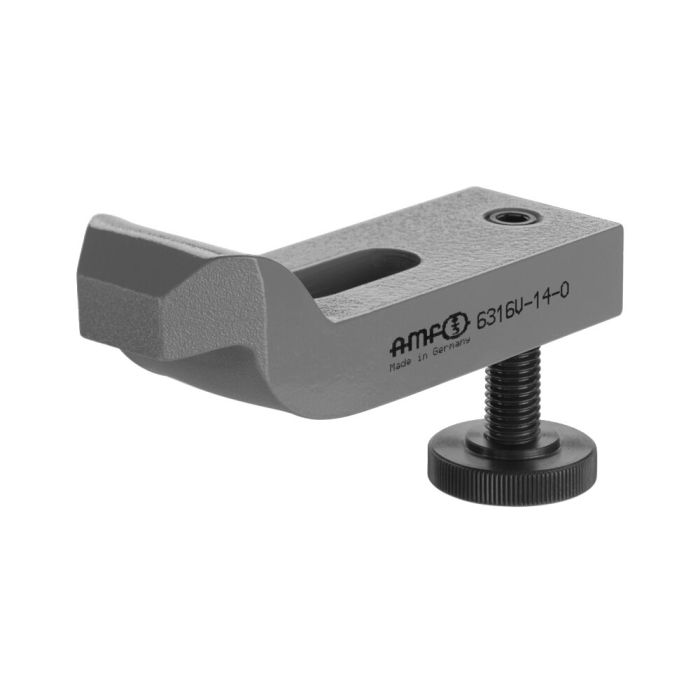

Cranked clamp with adjusting support screw
For clamping screw M10, clamping height 22-51 mm
Order no.
71183
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 71183 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 10 |
| Min. clamping height [mm] | 22 |
| Max. clamping height [mm] | 51 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screws for T-slot, strength class 12.9 Nr. 83998 Strength class 12.9, thread M10, slot 10 mm, length 80 mm
- Hexagonal nuts with collar (1.5 d high) Nr. 82545 Turned, size M10, height 15 mm, thread width 17 mm*
Similar products
- Crocodile clamp Nr. 79756 Max. clamping force 30 kN, slot 10/12/14 mm, for clamping screw M10/12, height 0-55 mm
- Tapered clamp with adjusting support screw Nr. 70177 For clamping screw M10, clamping height 8-37 mm
- Stepped clamp with adjusting support screw Nr. 71167 For clamping screw M10, clamping height 8-47 mm
- Stepped clamp with adjusting support screw, complete Nr. 73189 Slot 10 mm, with clamping stud M10x10x80, clamping height 8-37 mm
