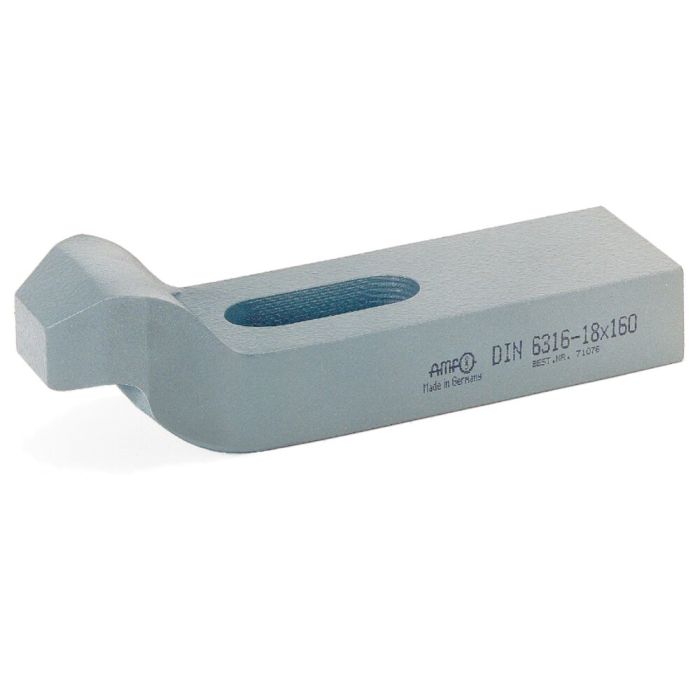

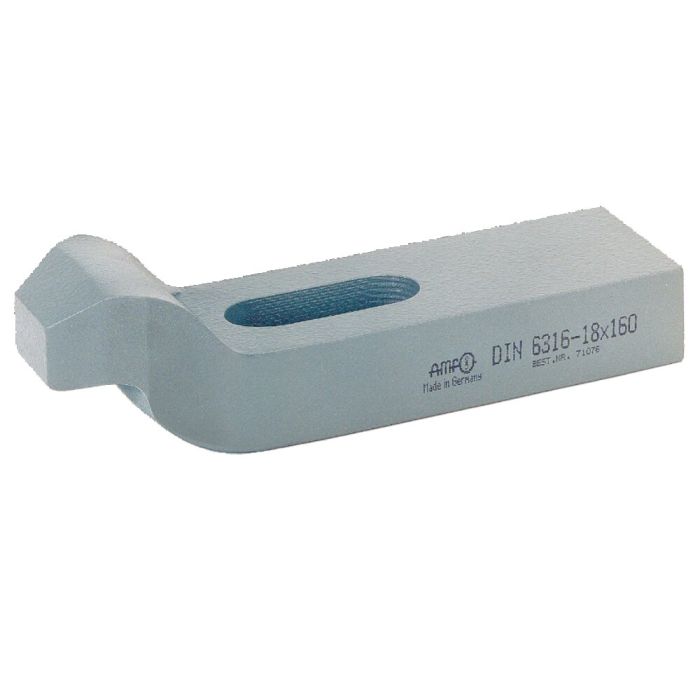

Clamp, cranked
For clamping screw metric M20/M22 and inch 3/4, length 160 mm
Order no.
71084
* Size not included in DIN, dimensions similar to DIN
| Order no. | 71084 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 20, 22 |
| Clamping screw inch | 3/4 |
