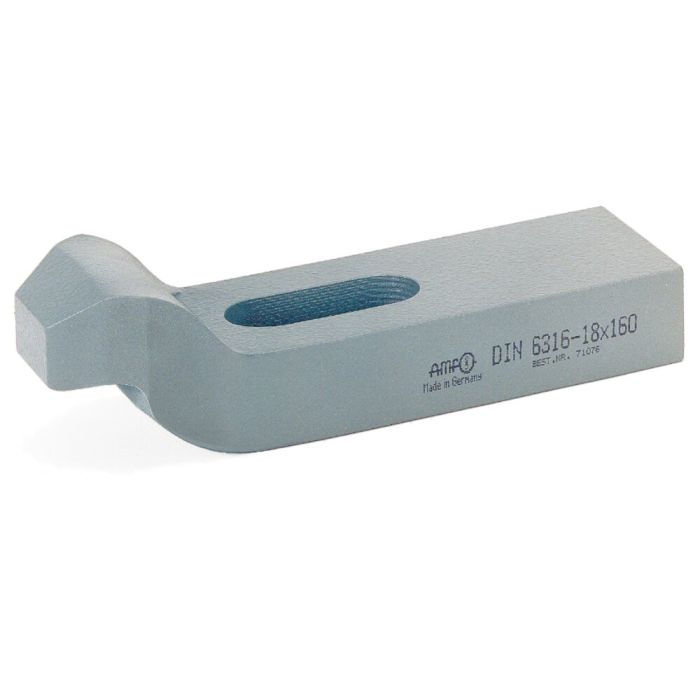

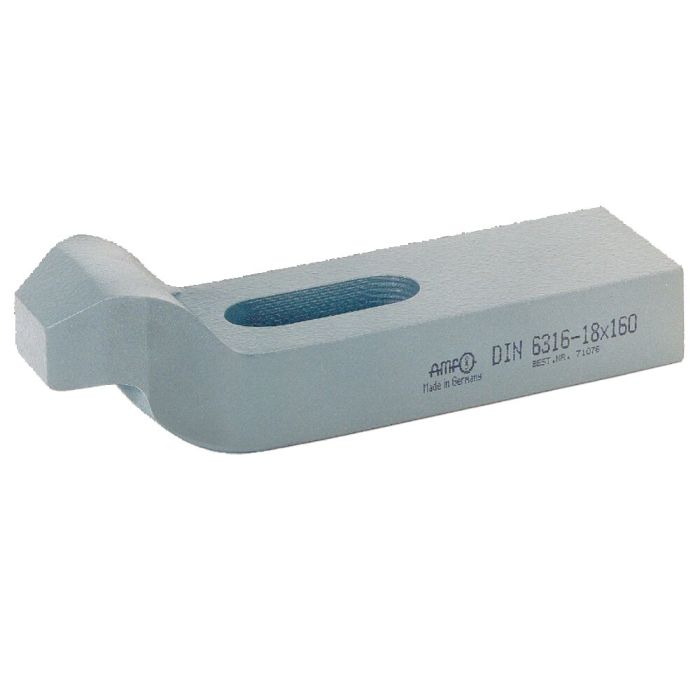

Clamp, cranked
For clamping screw metric M16/M18 and inch 5/8, length 160 mm
Order no.
71076
* Size not included in DIN, dimensions similar to DIN
| Order no. | 71076 |
|---|---|
| Clamping screw | Without clamping bolt |
| Clamping screw metric [M] | 16, 18 |
| Clamping screw inch | 5/8 |
