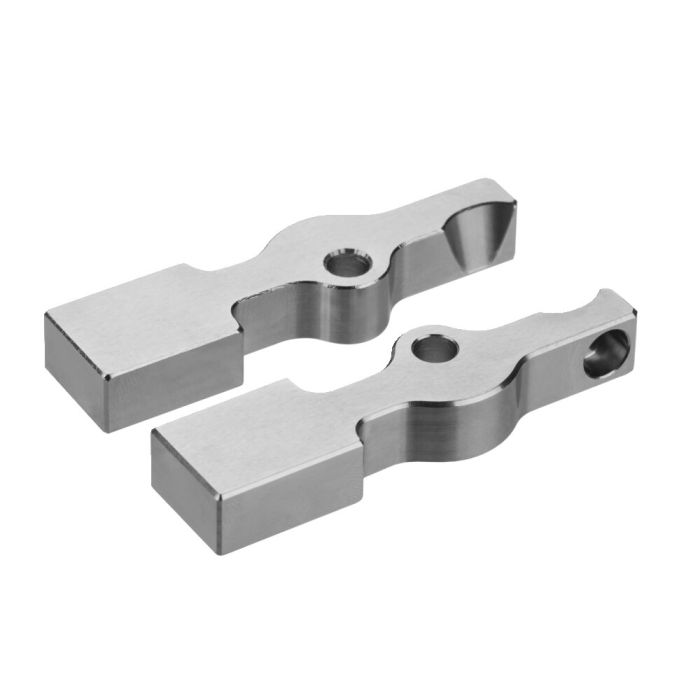

Clamping lever blank
For compensating collet 6965-20
Order no.
570477
Design:
Steel clamping lever.
Anwendung:
For compensating collet 6965-20.
Note:
Clamping force [kN] = Piston force [kN] * 22 [mm]/Lever length [mm]
| Order no. | 570477 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Compensating collet Nr. 570474 Max. operating pressure 250 bar, max. gripping force 4,6 kN, stroke 4,4/4,5 mm, double acting
Similar products
- Clamping lever, standard Nr. 570475 For compensating collet 6965-20, workpiece clamping range 3,5-8 mm
- Clamping lever, standard Nr. 570476 For compensating collet 6965-20, workpiece clamping range 6,1-10,5 mm
