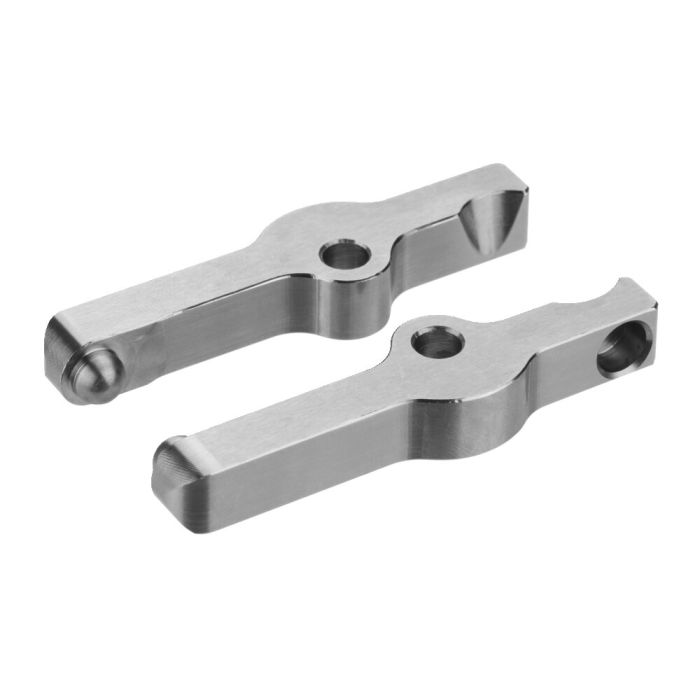

Clamping lever, standard
For compensating collet 6965-20, workpiece clamping range 3,5-8 mm
Order no.
570475
Design:
Steel clamping lever, case-hardened.
Anwendung:
For compensating collet 6965-20.
| Order no. | 570475 |
|---|---|
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 7.77 |
| Max. locking force [kN] | 4.6 |
| Type of actuation | Double acting |
| Stroke [mm] | 1 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Compensating collet Nr. 570474 Max. operating pressure 250 bar, max. gripping force 4,6 kN, stroke 4,4/4,5 mm, double acting
Similar products
- Clamping lever, standard Nr. 570476 For compensating collet 6965-20, workpiece clamping range 6,1-10,5 mm
