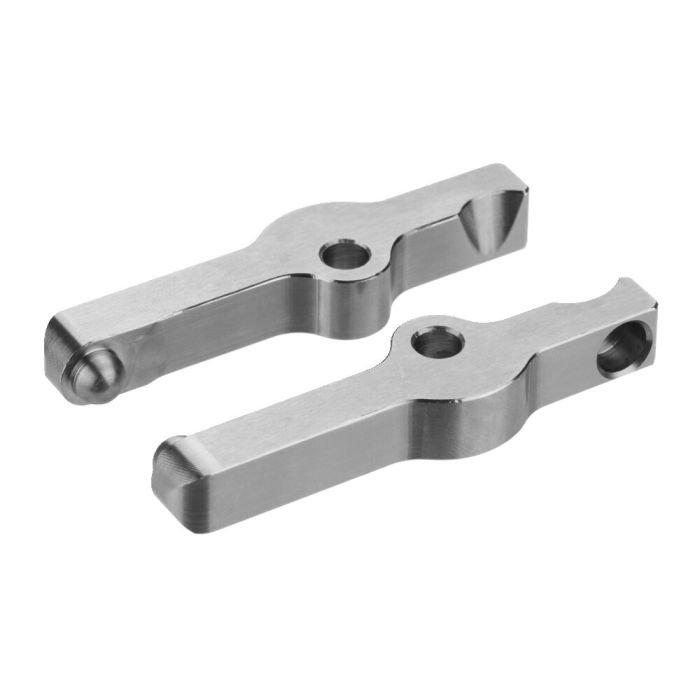

Clamping lever, standard
For compensating collet 6965-20, workpiece clamping range 6,1-10,5 mm
Order no.
570476
Design:
Steel clamping lever, case-hardened.
Anwendung:
For compensating collet 6965-20.
| Order no. | 570476 |
|---|---|
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 7.77 |
| Max. locking force [kN] | 4.6 |
| Type of actuation | Double acting |
| Stroke [mm] | 1 |
