Control unit with channel selection
Application:

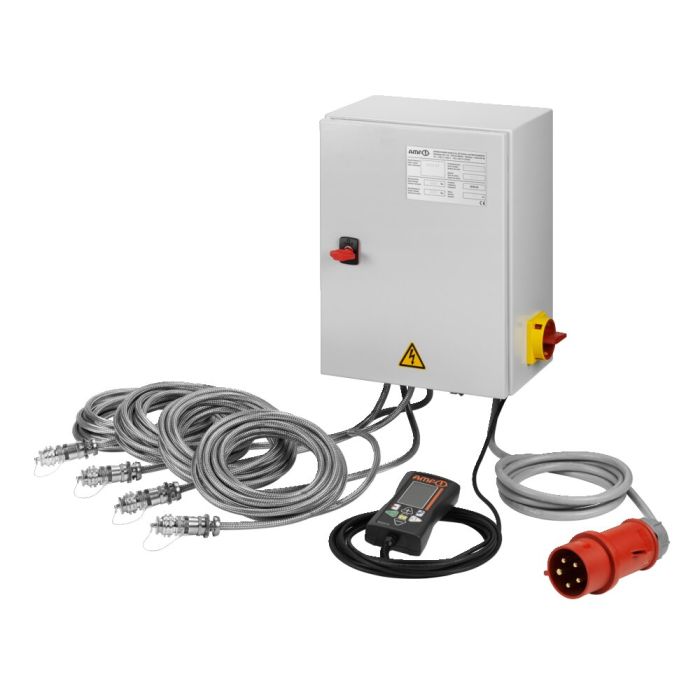

Control unit with hand-held controller for the activation of 1-2 or 1-4 magnetic clamping plates. The individual plates can be selected and removed with the hand-held controller. In addition, it controls the holding force regulation and also the system analysis.
To start the magnetisation or demagnetisation cycle, the following key combinations must be pressed simultaneously:
- Magnetisation = MAG + Release
- Demagnetisation = DEMAG + Release
Features:
The connection cable and control lead have a length of 6 metres each. The connection cable has a plug for 400V / 32A and is pre-installed ready for connection. The high-quality control cable has a sheathing made of steel mesh and an IP65 bayonet connector for connection to the magnetic clamping plate.
The hand-held controller is supplied as standard. It can be used to set the holding force, if desired.
The control unit has a prepared cable bushing for the machine locking device signal.
Advantage:
- Compact and connection-ready controller for 1-2 or 1-4 magnetic clamping plates
- Short cycle times less than 1 second for magnetisation or demagnetisation
- Including hand-held controller as remote control for convenient handling
- No further installation necessary, such as of a connector plug
- Very solid and robust construction
| Order no. | 561439 |
|---|
