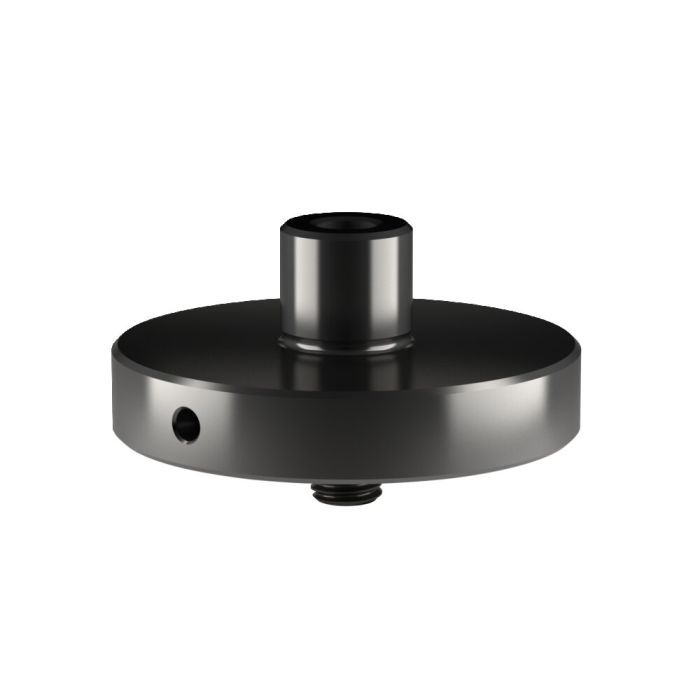

Fixing cap with thread
For forked clamps, ⌀ 78 mm, height 15 mm, head dia. 21 mm
Order no.
376350
Advantage:
Centring plate can be screwed onto screw jacks. Internal thread for additional fastening of clamps onto screw jacks. Safety with vertical turning and boring machines.
| Order no. | 376350 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 15 |
| Max. height [mm] | 15 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
