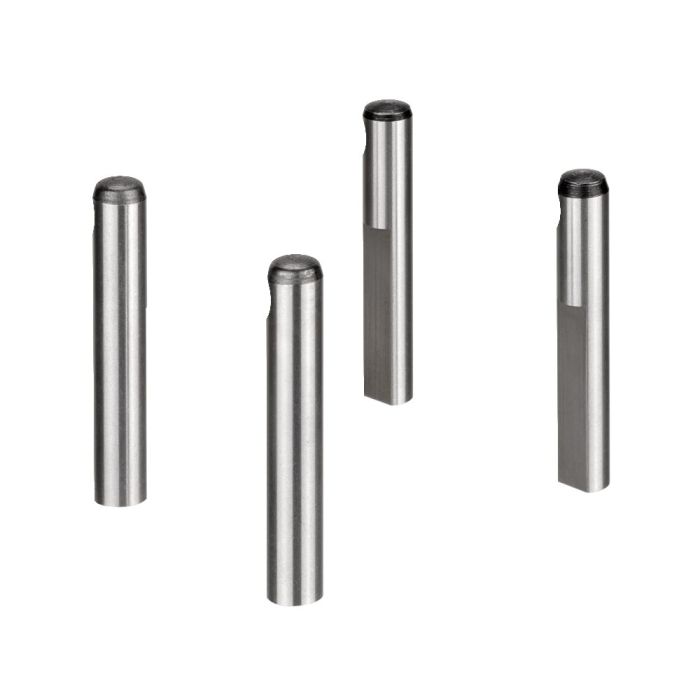

Gripper inserts for gripper - finger
Hardened pin with flat clamping surface on one side
Order no.
563930
Application:
For quick and safe parts handling in the machine tool using the AMF gripper. The parts are mounted to the gripper carrier and mechanically secured.
Note:
The gripper inserts are suitable for all AMF grippers in the series No. 1650. They can be adapted to the workpiece size concerned by displacement on the gripper carrier. The set includes:
- 2 x grippers - Finger left
- 2 x grippers - Finger right
* Gripper with 80 mm gripper extension (L5) : A=7.5 - 50 mm
Gripper with 100 mm gripper extension (L5): A=7.5 - 70 mm
| Order no. | 563930 |
|---|
