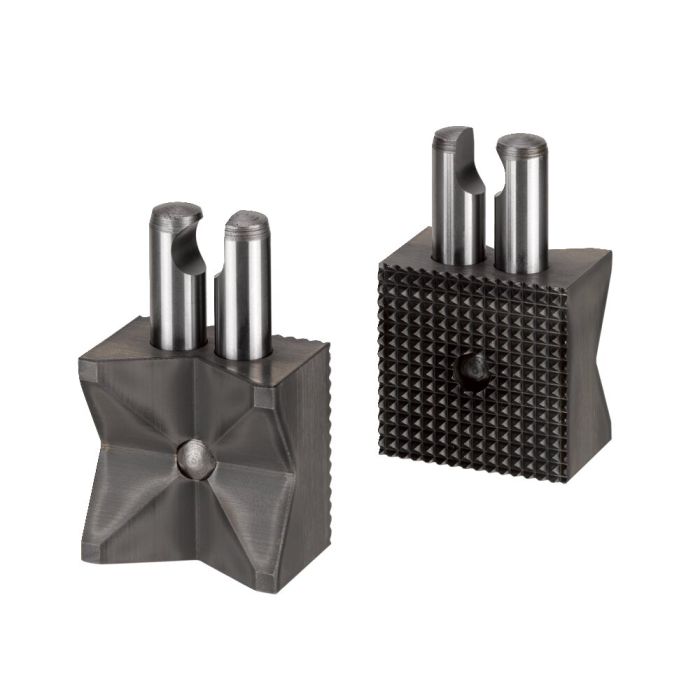

Gripper inserts for gripper - prism
First side prismatic, second ribbed
Order no.
538140
Application:
For quick and safe parts handling in the machine tool using the AMF gripper. The parts are mounted to the gripper carrier and mechanically secured.
Note:
The grip inserts are suitable for all AMF grippers in the No. 1650 series. These can be adapted to the workpiece size concerned by displacement on the gripper carrier.
* Gripper with 80 mm gripper extension (L5): A=0-40 mm and ØD = 12.5 - 39 mm
Gripper with 100 mm gripper extension (L5) : A=0-59 mm and ØD = 12.5 - 56 mm
| Order no. | 538140 |
|---|
