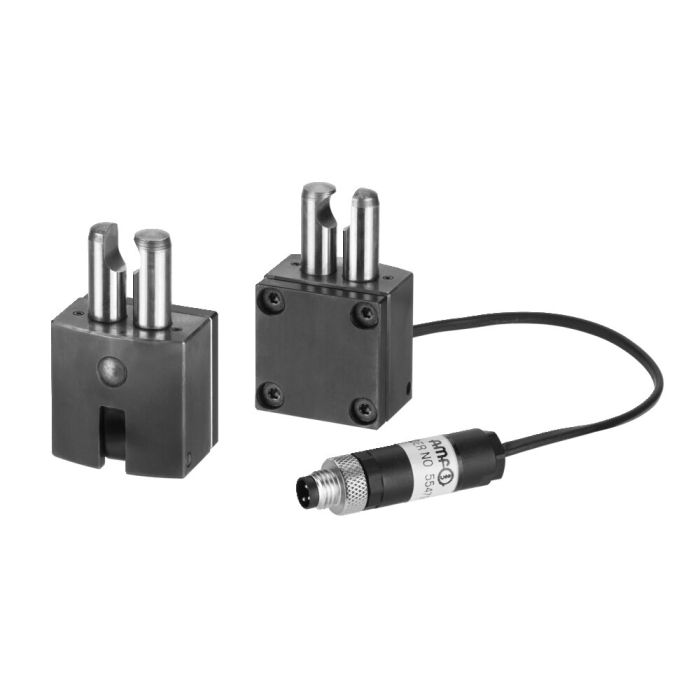

Gripper inserts for gripper - wireless sensoring systems
Application:
The Wireless sensoring systems gripper inserts are equipped with a microswitch and act as a signal transmitter (sensor), which is connected by cable to a transmitter, the Sender-Unit gripper switch (No. 5020-GM01).
The microswitch detects the presence of a gripped workpiece.
Different states of the AMF gripper can be queried with the aid of the AMF Wireless sensoring systems to ensure reliable processing. The Wireless sensoring systems transmit the sensor signal to a receiver (Gateway No.5010G) via Bluetooth Low Energy (BLE 4.0) by means of the Sender-Unit gripper switch.
Note:
Accessories, such as gateway, pairing stick and antenna extension, can be found in the AMF Wireless sensoring systems catalogue.
The Wireless sensoring systems inserts are delivered in pairs.
| Order no. | 561709 |
|---|---|
| Special features | With a microswitch |
