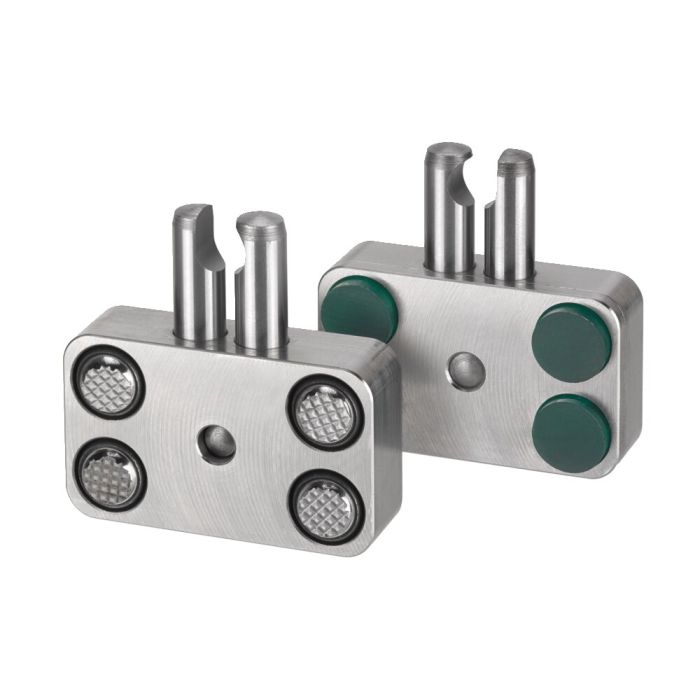

Gripper inserts for gripper - universal
First side ribbed, second side soft plastic
Order no.
538181
Application:
For quick and safe parts handling in the machine tool using the AMF gripper. The parts are mounted to the gripper carrier and mechanically secured.
Note:
The gripper inserts are suitable for all AMF grippers in the series No. 1650. They can be adapted to the workpiece size concerned by displacement on the gripper carrier.
* Gripper with 80 mm gripper extension (L5) : A=0-34 mm
Gripper with 100 mm gripper extension (L5) : A=0-54 mm
| Order no. | 538181 |
|---|
