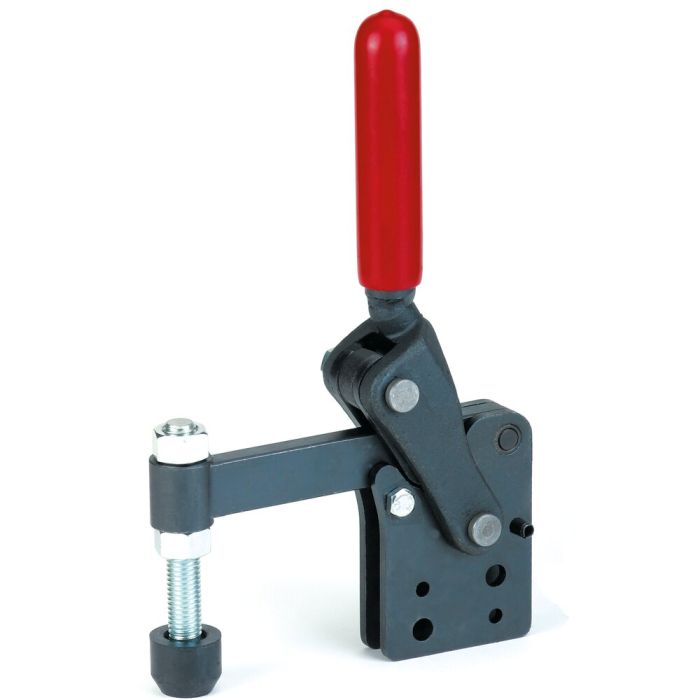

Heavy vertical toggle clamp
With vertical base and mounting holes, size 6, max. clamping force 12 kN
Order no.
90910
Note:
These heavy vertical toggle clamps are especially suitable for production equipment and fixtures.
| Order no. | 90910 |
|---|---|
| Product type | Vertical toggle clamp |
| Max. clamping force [kN] | 12 |
| Größe Schnellspanner | 6 |
| Material | Steel, burnished |
| Foot alignment | Vertical |
| Handle color | Red |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Rubber nose Nr. 99374 Fits the clamping screws no. 6880, no. 6885, no. 6890 and no. 6892, size M12, key width 18 mm*
