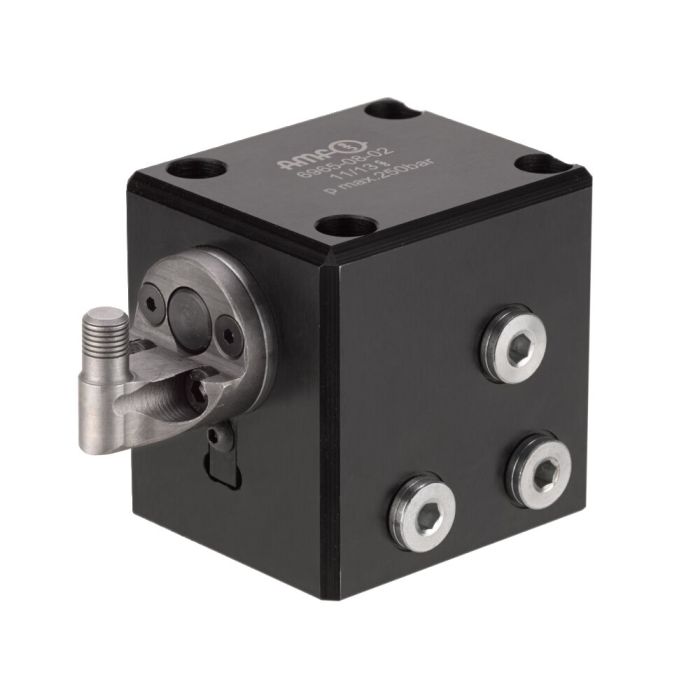

Hydraulic Compensating Clamp
Design:
Housing made of steel, burnished. Steel clamping lever, case-hardened. The clamping levers are driven by two single-acting threaded cylinders. Oil supply via oil channel in fixture body. Supplied as standard with oil feed brake and four fastening bolts M6 x 70. A filter insert with an O-ring is integrated in the supply.
Application:
The clamping tongs prevent vibrations on the workpiece during machining. The clamping tongs are suitable for holding the workpieces but not for positioning them,
Features:
The clamping tongs hold the workpiece without clamping it. A wide range of clamping forms can be implemented with the clamping lever blank.
Note:
Resetting of the clamping levers by the oil feed brake. Resetting is also possible via a spring, which is not supplied as standard.
| Order no. | 320333 |
|---|---|
| Max. operating pressure [bar] | 100 |
| Max. piston force [kN] | 2 |
| Max. locking force [kN] | 3 |
| Max. holding force [kN] | 0.5 |
| Type of actuation | Single acting |
| Stroke [mm] | 3 |
