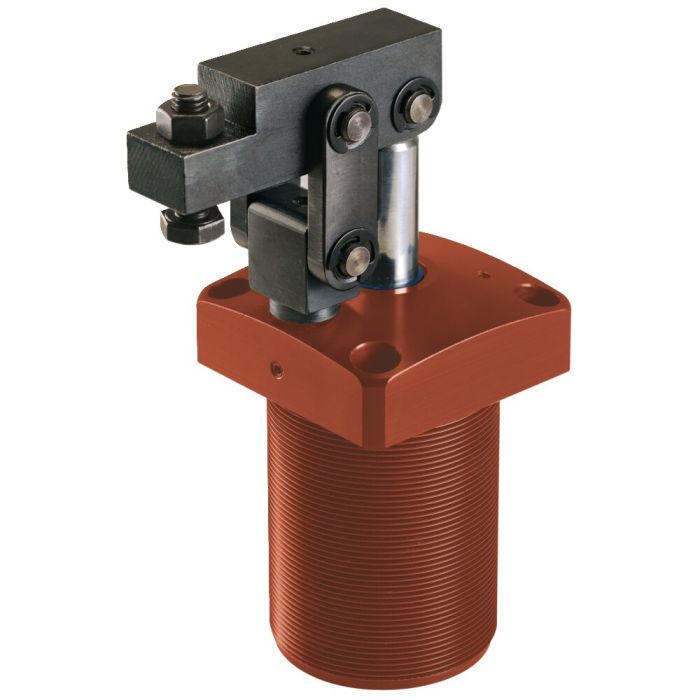

Link Clamp, pneumatic, flange-mounting version
Size 50, max. clamping force 0,76 kN
Order no.
93633
Note:
The lever mechanism can be dismantled so that it can be individually modified. The mounting holes in the flange are similar to those in threaded flange No. 6829GF.
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
| Order no. | 93633 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 0.76 |
| Größe Schnellspanner | 50 |
| Material | Aluminium, red anodised |
