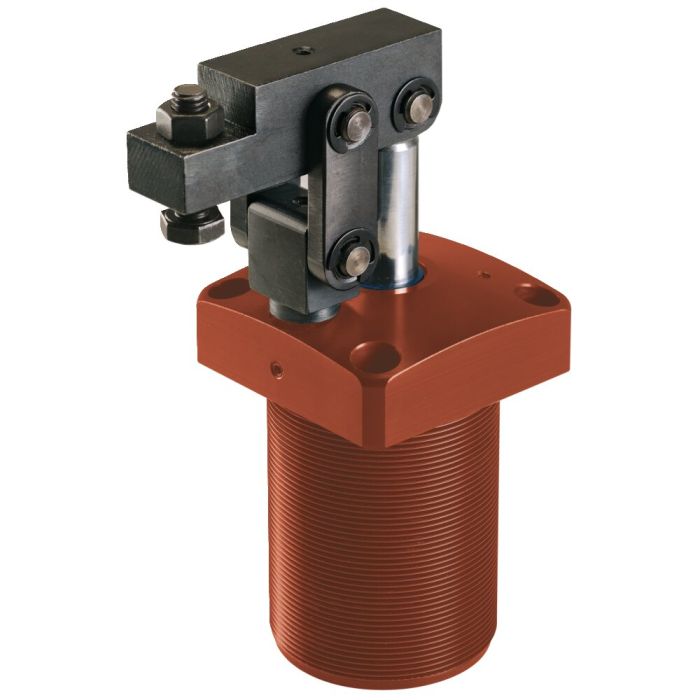

Link Clamp, pneumatic, flange-mounting version
Size 63, max. clamping force 1,35 kN
Order no.
93641
Note:
The lever mechanism can be dismantled so that it can be individually modified. The mounting holes in the flange are similar to those in threaded flange No. 6829GF.
Operate only with lubricated air.
F3 = at 6 bar max. air pressure
| Order no. | 93641 |
|---|---|
| Product type | Link clamp |
| Max. clamping force [kN] | 1.35 |
| Größe Schnellspanner | 63 |
| Material | Aluminium, red anodised |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
