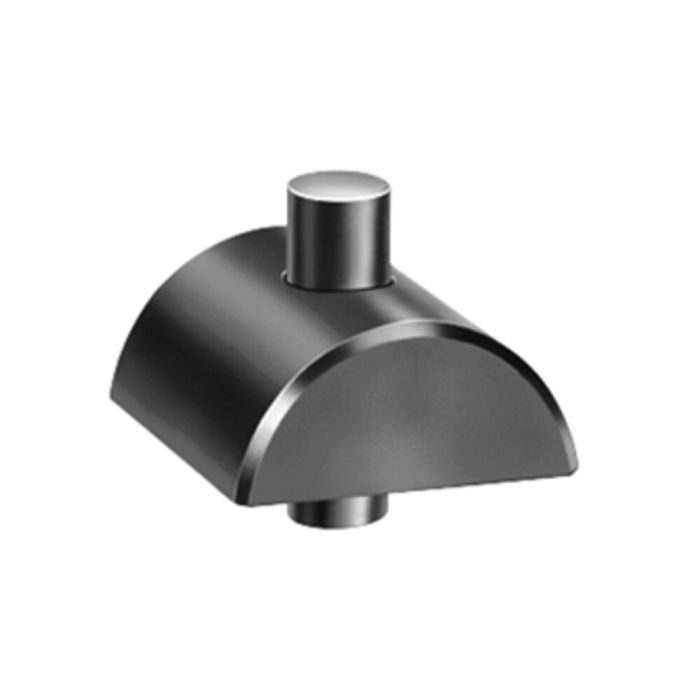

Locating-pad
With cylindrical face, width 50 mm, height 50 mm, head dia. 12 mm
Order no.
72454
| Order no. | 72454 |
|---|---|
| Product type | Attachments |
| Min. height [mm] | 23 |
| Max. height [mm] | 23 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw jack with flat support Nr. 72405 Size 70, centring hole Ø12 mm / M10, height 50-70 mm, ⌀ 50 mm
- Screw jack, quick-action Nr. 75705 Size 450, centring hole D12 / M10, height 320-450 mm, width 190 mm, length 220 mm
