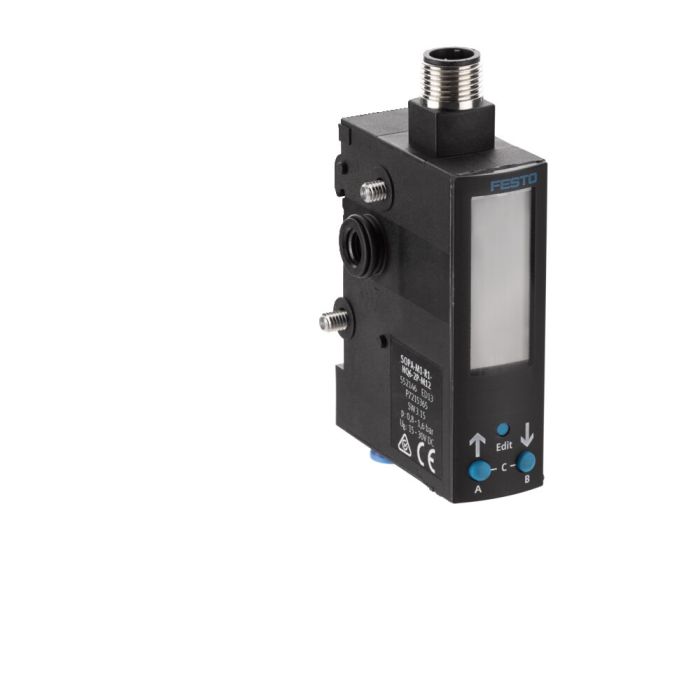

Sensor module for pneumatic sensor unit

Design:
Sensor module as extension module for the pneumatic sensor unit with integrated LCD display for displaying the operating status and one connecting cable with 5 meters in length and one open end.

Technical data:
Distance measuring range: 0.02 - 0.2 mm
Pneumatic connection: Q6 Plug connection 6 mm
Electrical output: 2 switch outputs PNP
Electrical connection: M12 plug, A-coded

Application:
Sensor module for querying and condition monitoring of the AMF zero-point clamping system for the automation. The switchpoints of the sensor modules are applied directly in the teach-in process and can then be finely adjusted and adapted manually to the individual requirements.

Note:
A maximum of four sensor modules can be mounted and connected per control module.
