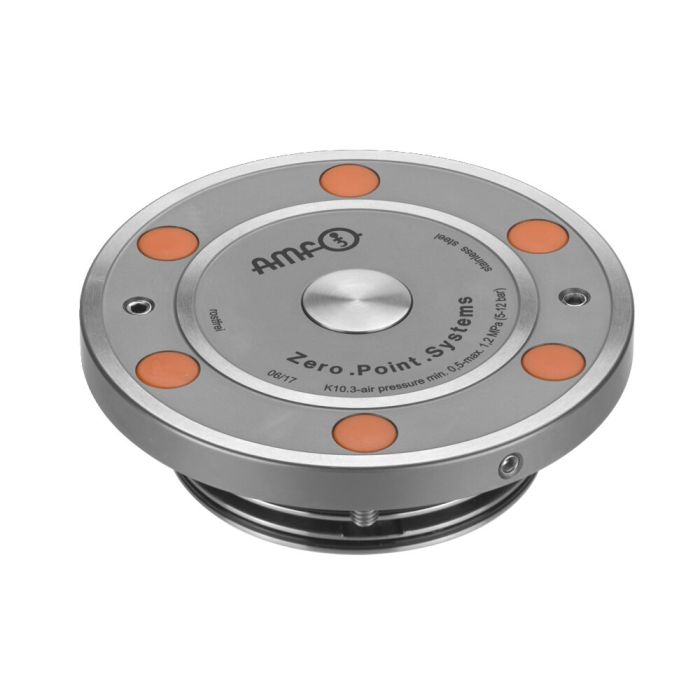

Installation clamping module with central lock for automation solutions
Application:
Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining.
Note:
The central lock actuated by spring force for protection of the clamping module. The pull-stud is fastened and installed using an M8 DIN ISO countersunk head screw. Support control via the blow-out function: Dynamic pressure with supported interchangeable pallet. The clamping module is opened pneumatically and locked mechanically by spring force. Subsequent disconnection of the pressure line is possible at any time (clamping module is clamped without pressure).
The clamping module has three connections:
1 = pneum. Opening
3 = pneum. Blow-out
5 = venting
* Please observe the installation instructions.
On request:
- Installation diagrams
| Order no. | 559390 |
|---|---|
| Product type | Installation clamping modules |
| Operating mode | Pneumatic |
| Size clamping module | 10 |
| Holding force [kN] | 25 |
| Pull-in/locking force [kN] | 10 |
| Automation query | Support control |
| Special features | With central lock |
