Spacer element
Application:

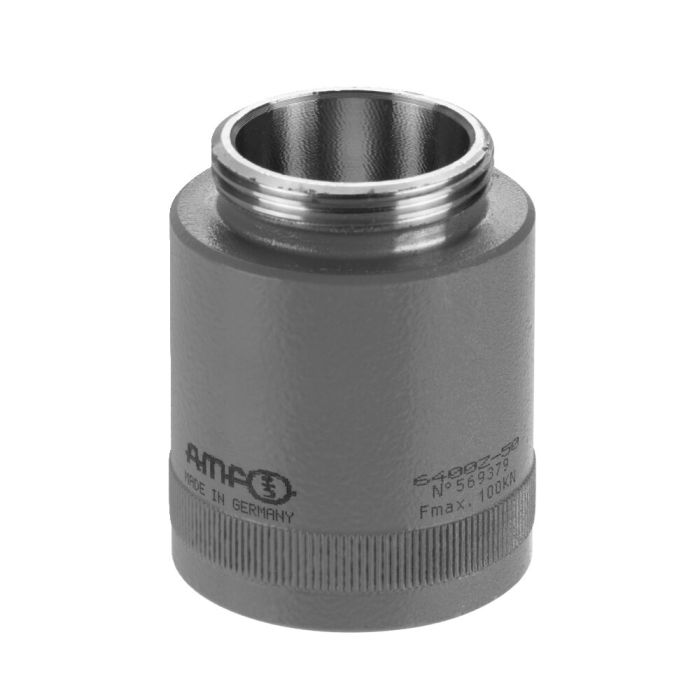

The spacer elements enable a modular height extension for the AMF 6400 screw jack in sizes 52/70/100. The individual elements are screwed together.
The combination of different base elements and the assembly of three screw jacks of different heights enables variable use.
The various elements can be fixed in place process safe using a hook spanner.
Note:
Maximum achievable height of 422 mm with a permissible support force of 100 kN, above this there is a risk of buckling.
Do not adjust under load.
When using the magnetic base 6401M, a maximum height of 160 mm can be implemented when the modular screw jack is used horizontally.
Advantage:
- Maximum height of 422 mm is achieved continuously adjustable and with a height overlap
- Improved handling by means of individual elements
- Set-up time saving thanks to flexibility of parts
- storage optimisation
| Order no. | 569378 |
|---|---|
| Product type | Screw jack |
| Min. height [mm] | 25 |
| Max. height [mm] | 25 |
