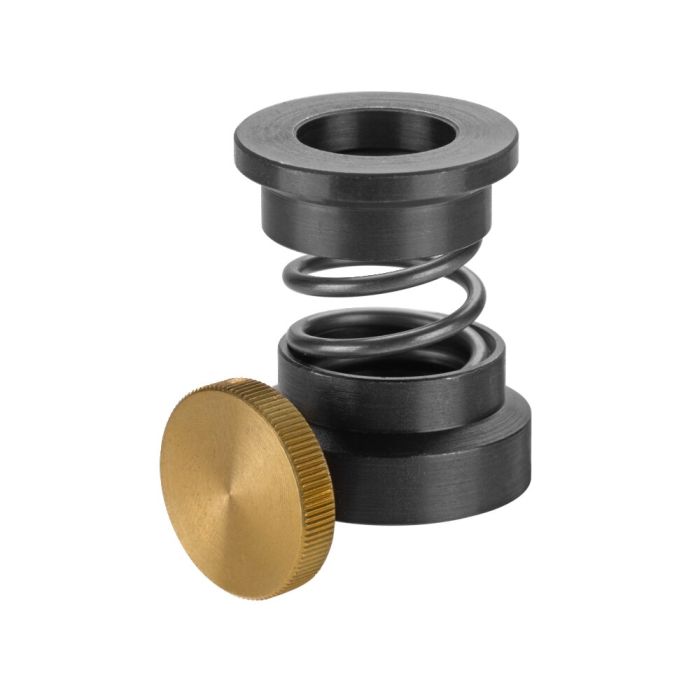

Spring type clamp support
For clamping screw M20-M22, ⌀ 38 mm, height 28 mm, travel of spring 12 mm
Order no.
75986
The spring type clamp support holds the clamp while the work piece is removed and loaded, ensuring fast and safe clamping sequence.
| Order no. | 75986 |
|---|---|
| Product type | Clamp support |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Screw jack with flat support Nr. 72413 Size 100, centring hole Ø12 mm / M10, height 70-100 mm, ⌀ 50 mm
Similar products
- Clamping unit to clamp outside of the tool table Nr. 79194 Clamping force 50 kN, slot 28 mm, height 40-53 mm
