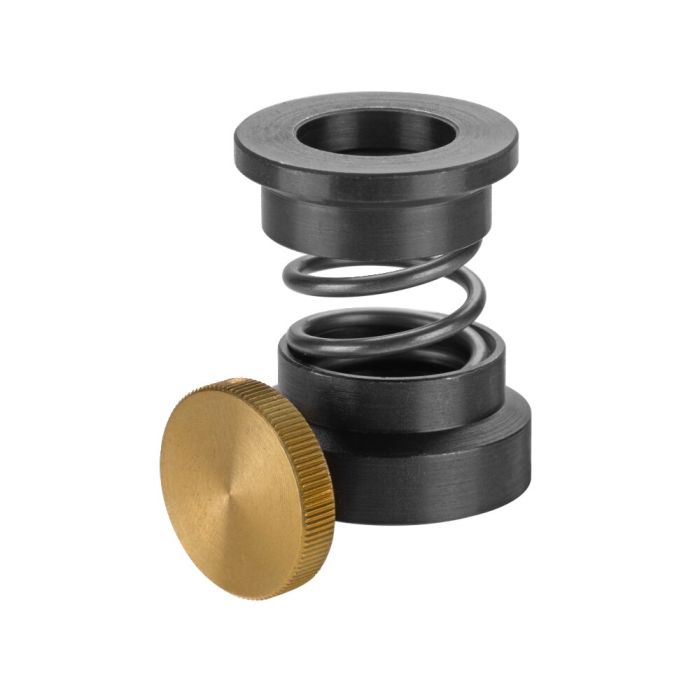

Spring type clamp support
For clamping screw M8-M10, ⌀ 22 mm, height 22 mm, travel of spring 8 mm
Order no.
75952
The spring type clamp support holds the clamp while the work piece is removed and loaded, ensuring fast and safe clamping sequence.
| Order no. | 75952 |
|---|---|
| Product type | Clamp support |
