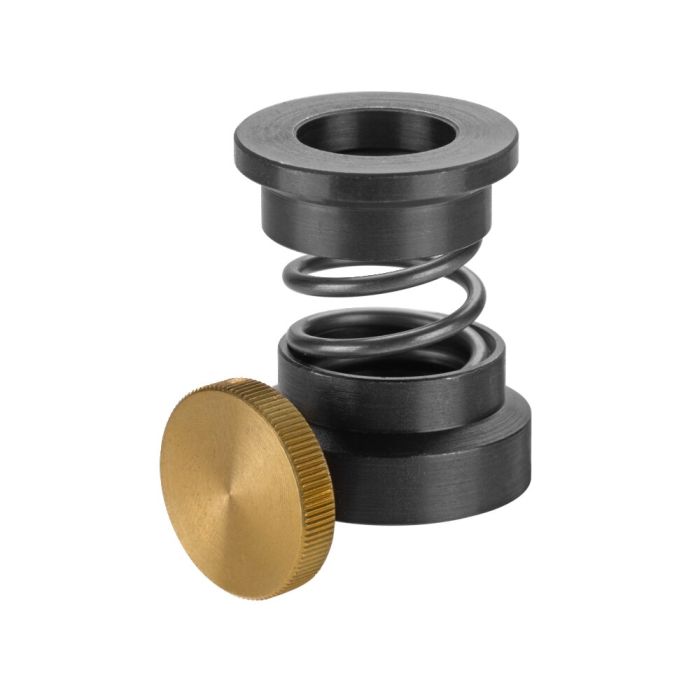

Spring type clamp support
For clamping screw M12-M14, ⌀ 26 mm, height 22 mm, travel of spring 10 mm
Order no.
75960
The spring type clamp support holds the clamp while the work piece is removed and loaded, ensuring fast and safe clamping sequence.
| Order no. | 75960 |
|---|---|
| Product type | Clamp support |
